BREMI Coils Replacement with BOSCH


The replacement took place when one of my coils failed, causing the engine light to turn on. After reading all the fuss made about the failure rate of Bremi coils, I suspected that I was a victim as well.



A quick visit to the dealer got me 6 brand new Bosch coils at £14.00 each. They already knew that Bremi coils had issues.



Installation difficulty: 2 out of 5 (because you have to run to a shop to erase the fault code)

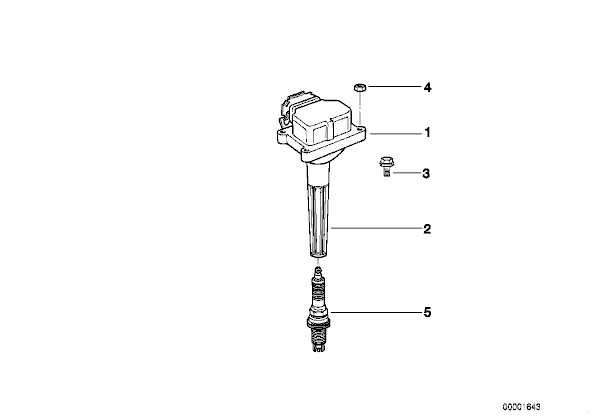

No. Description Supplement Qty  From   Up To  Part Number Price Notes
01 IGNITION COIL BOSCH 6   09/2002 12131703228   ENDED
01 IGNITION COIL BREMI 6   09/2002 12131748018 $83.70
01 IGNITION COIL BOSCH 6   10/2002 12131703228   ENDED
01 IGNITION COIL BREMI 6   10/2002 12131748018 $83.70
02 SPARK PLUG SOCKET   6   09/2002 12139067831 $14.17
02 SPARK PLUG SOCKET   6   10/2002 12139067831 $14.17
03 HEX BOLT WITH WASHER M6X25-Z1-ZNS 12   09/2002 07119900249 $0.50
03 HEX BOLT WITH WASHER M6X25-U1-8.8 12   09/2002 07119905400 $4.46
03 HEX BOLT WITH WASHER M6X25-Z1-ZNS 12   10/2002 07119900249 $0.50
03 HEX BOLT WITH WASHER M6X25-U1-8.8 12   10/2002 07119905400 $4.46
05 SPARK PLUG, HIGH POWER BOSCH FGR7DQP 6     12120141871 $16.63
05 SPARK PLUG, HIGH POWER NGK BKR6EQUP 6     12129071003 $16.63
05 SPARK PLUG, HIGH POWER BOSCH FGR7DQP 6   09/2002 12120141871 $16.63
05 SPARK PLUG, HIGH POWER NGK BKR6EQUP 6   09/2002 12129071003 $16.63





1. Remove the cabin air filter assembly! How to do this is written on the blower fan DIY.



2. Remove the engine cover by popping the 2 small covers and removing the 2 nuts below. 12mm If I remember correctly.



3. Remove the 3-pin plug from each coil



4. Twist 90 degrees counterclockwise each coil and pull it out. Now it's a good time to change the spark plugs if you need to.



5. Insert the new coils in the exact way; insert, twist.



6. Plug the wires back and start the engine. Verify it's running properly before placing the covers back.



7. Re-install the engine cover, cabin filter and you are good to go!
