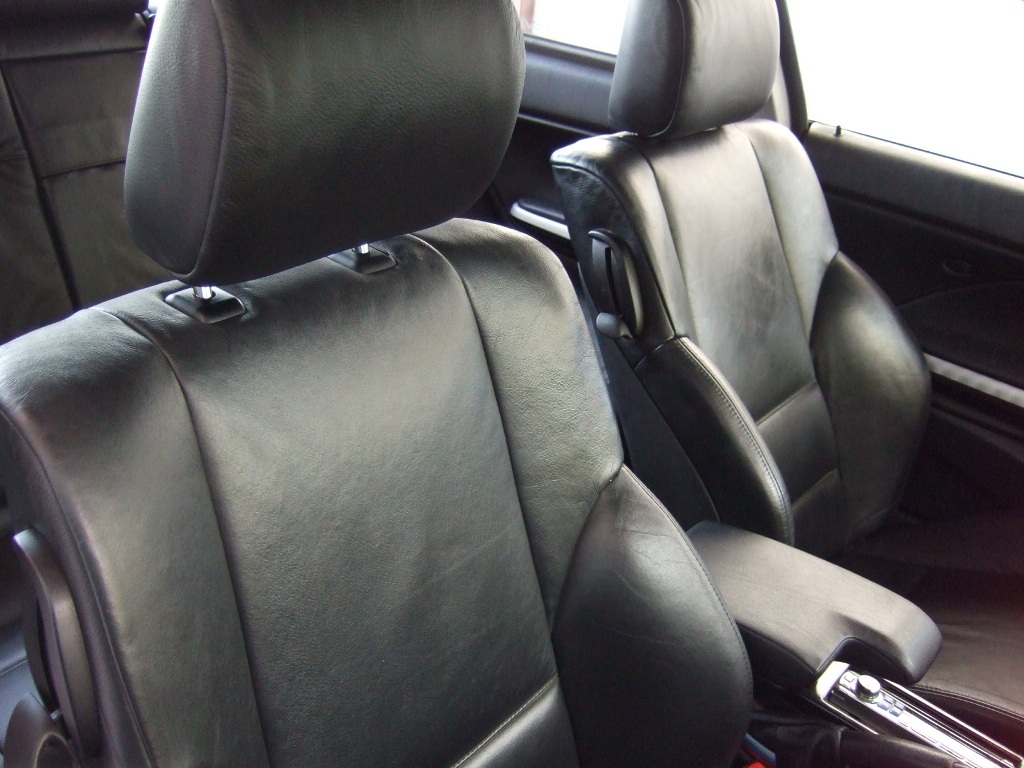

Sport Electric Seats with Memory Retrofit

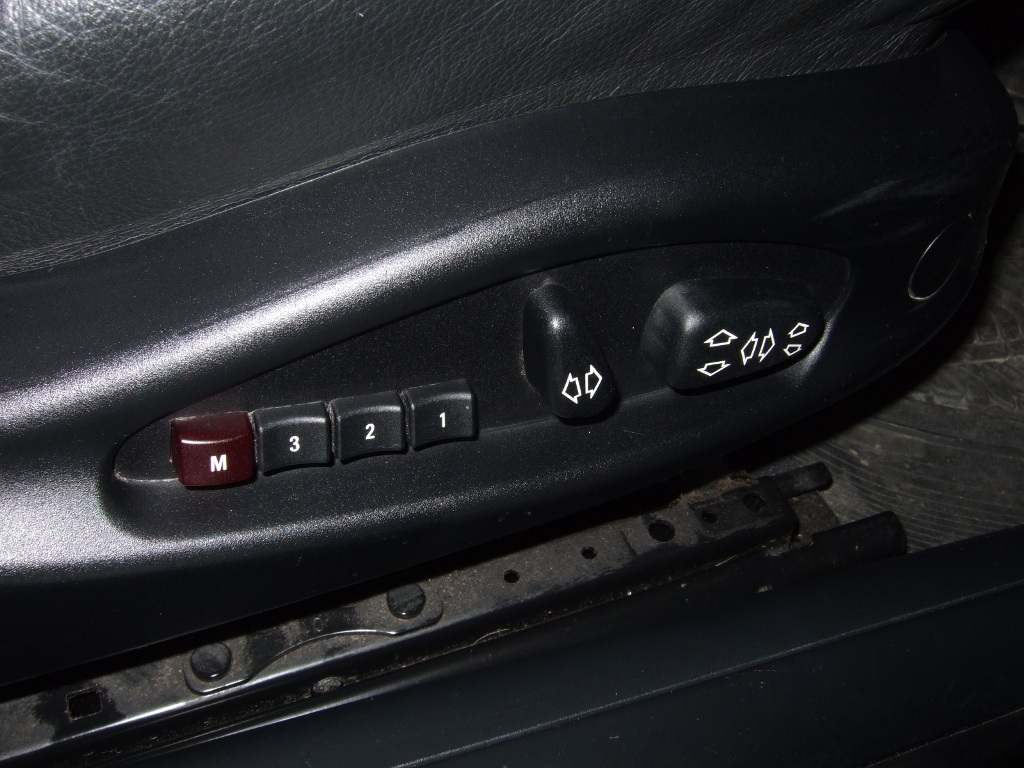

Finally, I managed to get from ebay (Quarry Motors) a complete Montana Leather Sport Electric seats with memory. Seats arrived with ship in very good condition (no wear marks tears or anything similar) and very well packed. Installation was easy enough to be honest, with the most difficult part to run wires from fuse box to under the seats. The driver's seat needs 3 wires [1 ground, 1 power and 1 memory] whilst the passenger needs 2 wires [1 ground, 1 power]. The motor wires in the seats are easily identified by the larger gauge compared with the rest. To provide power I used my own spade connectors to give power to the seat main motor wires instead of modifying the plug. That plug connects the seat buckle sensor, seat occupancy sensor among other so I didn't want to mess with it.

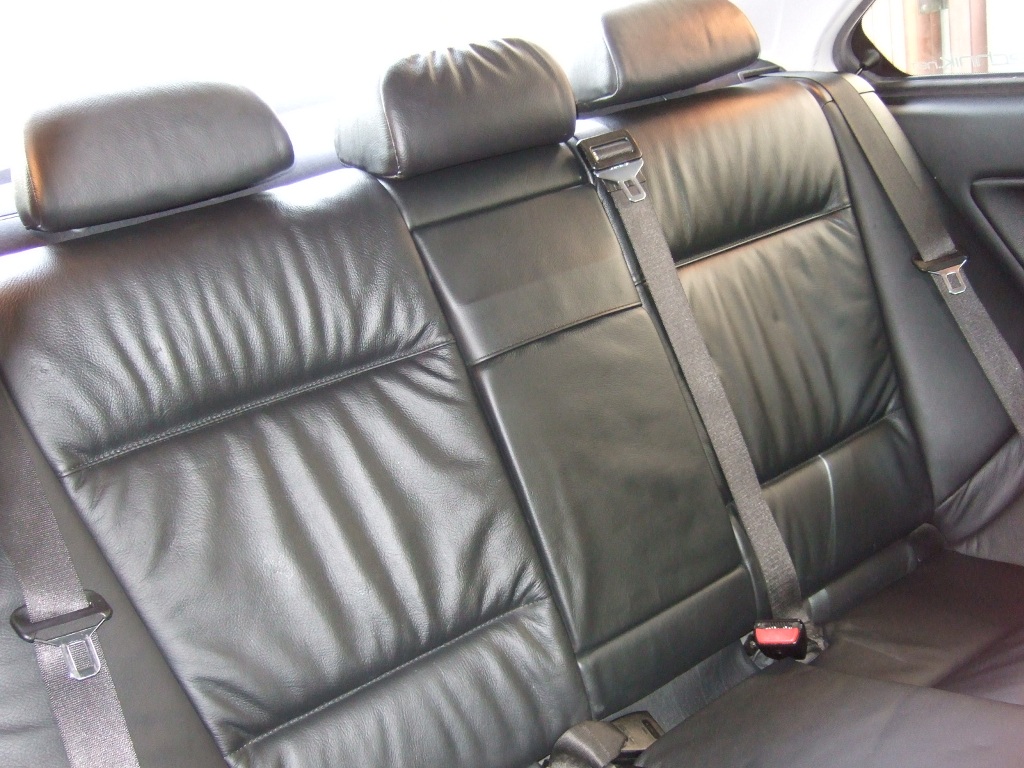

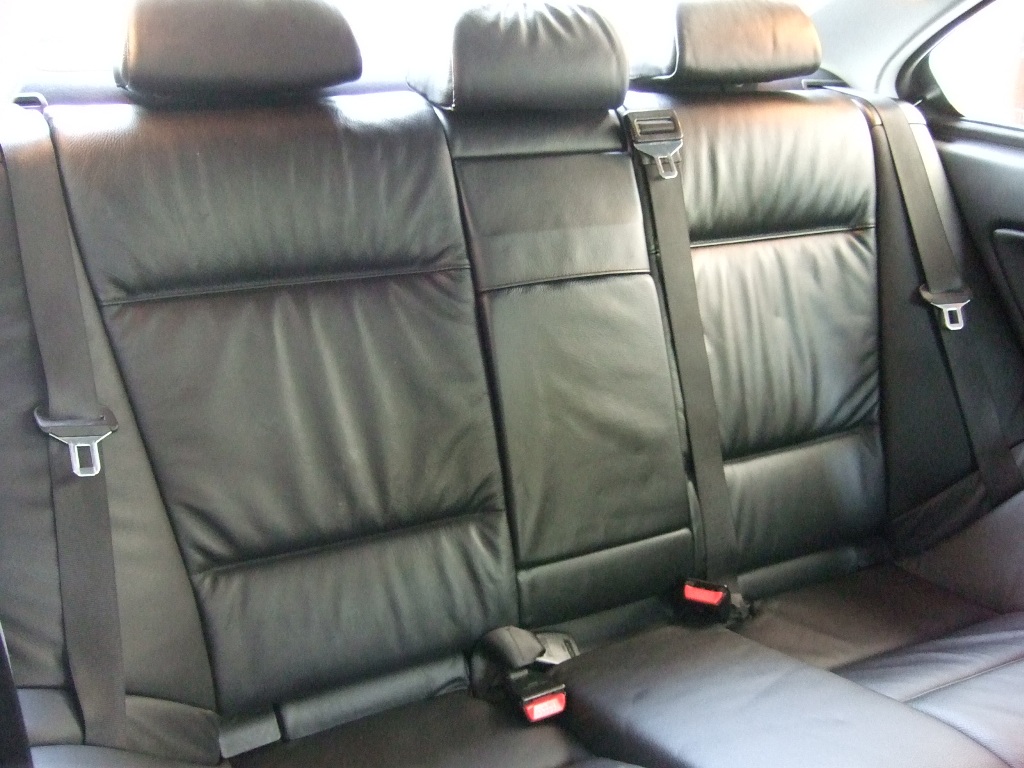

The rear seats were just a matter of removing the old and reverse-installing the new seats. Most of the plastic clips for the side panels broke so I had to get new ones from dealer. The rear foldable seats are held in place by 1 Torx bolt located under the rear armrest.

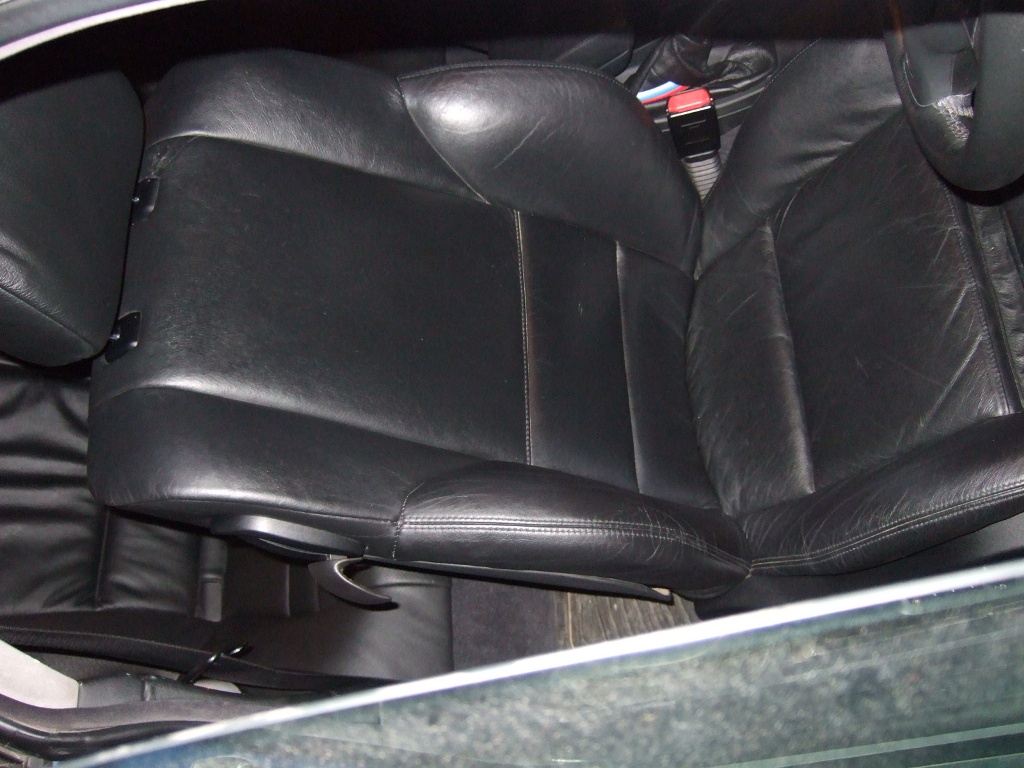

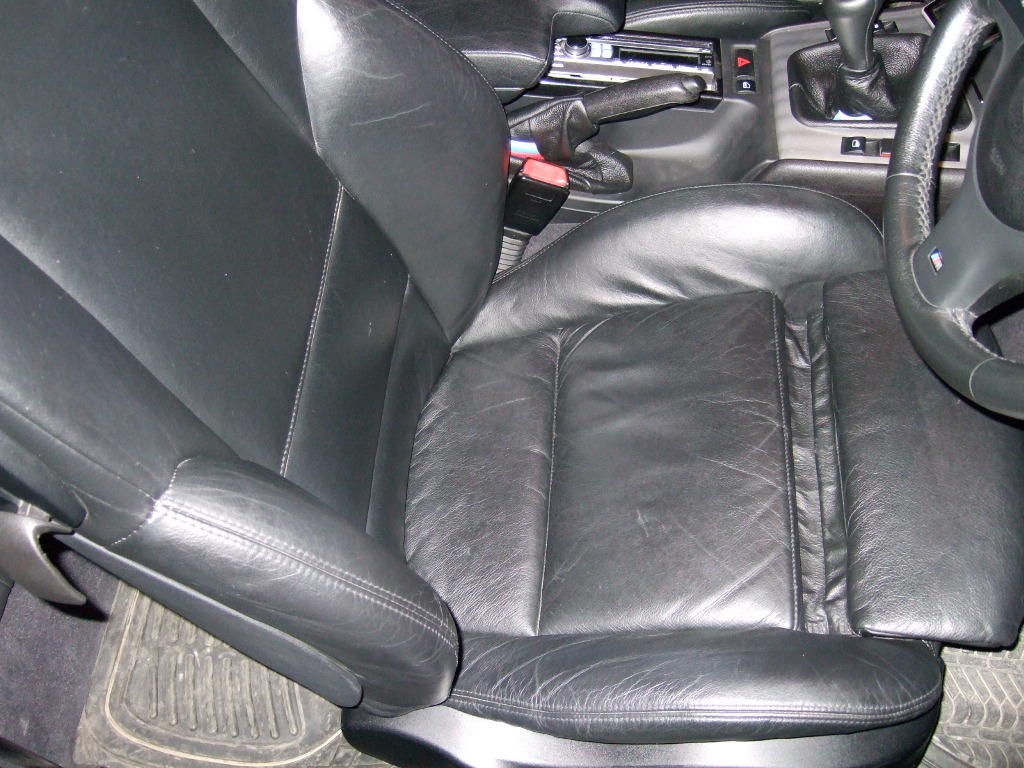

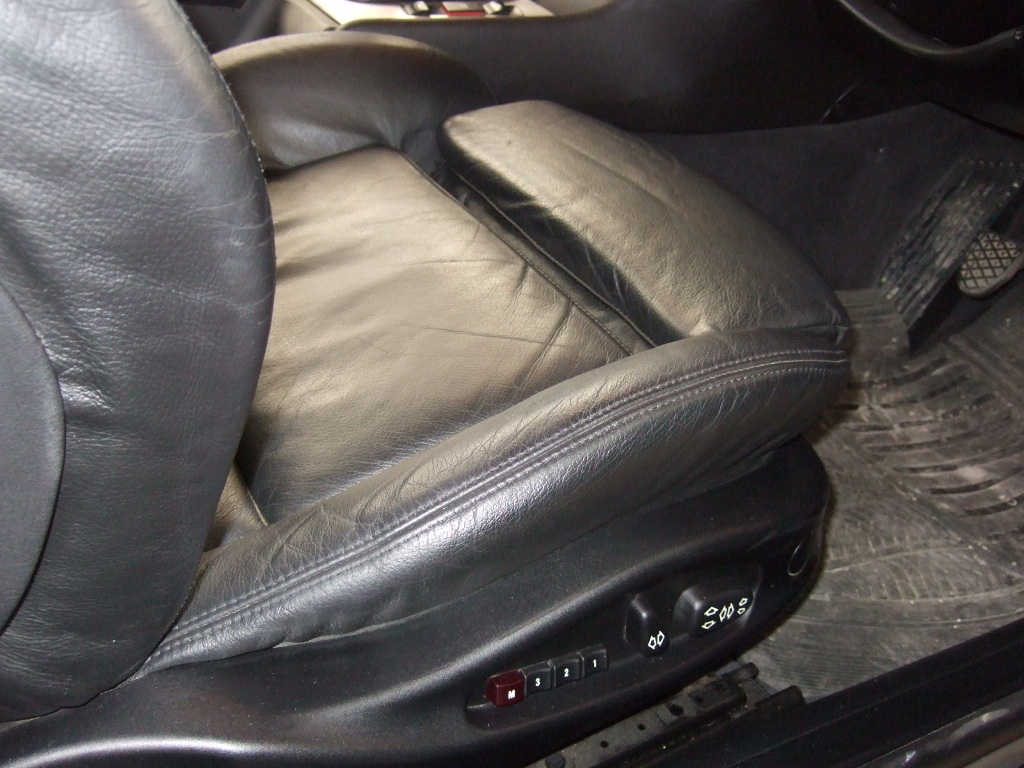

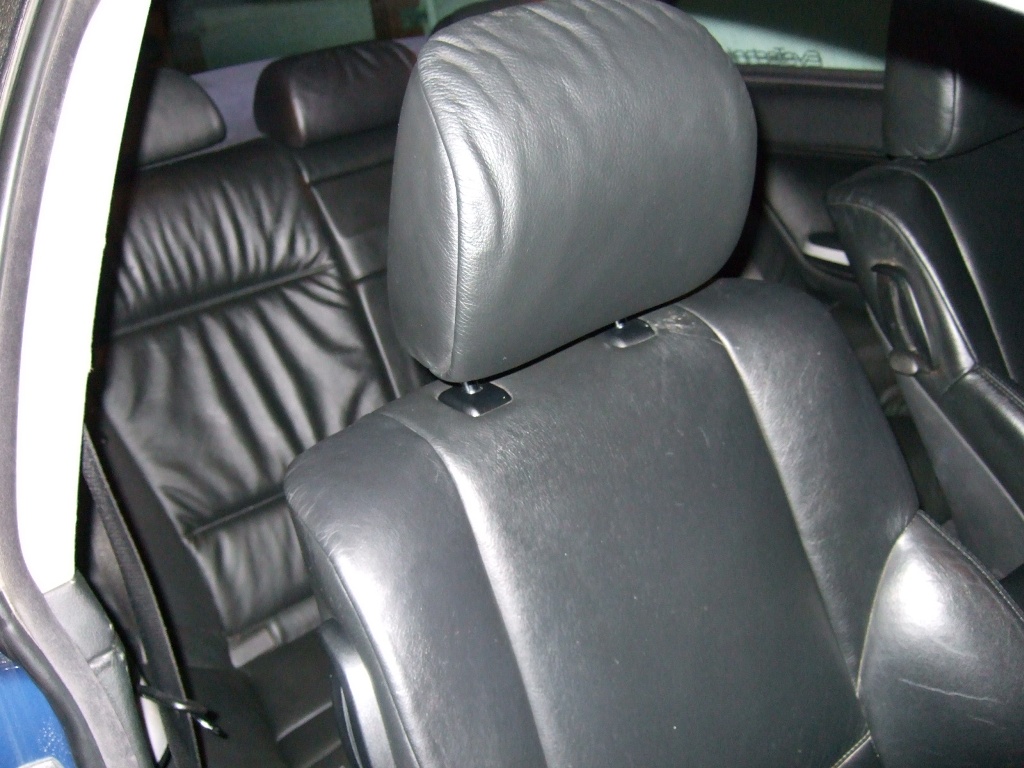

Front driver seat

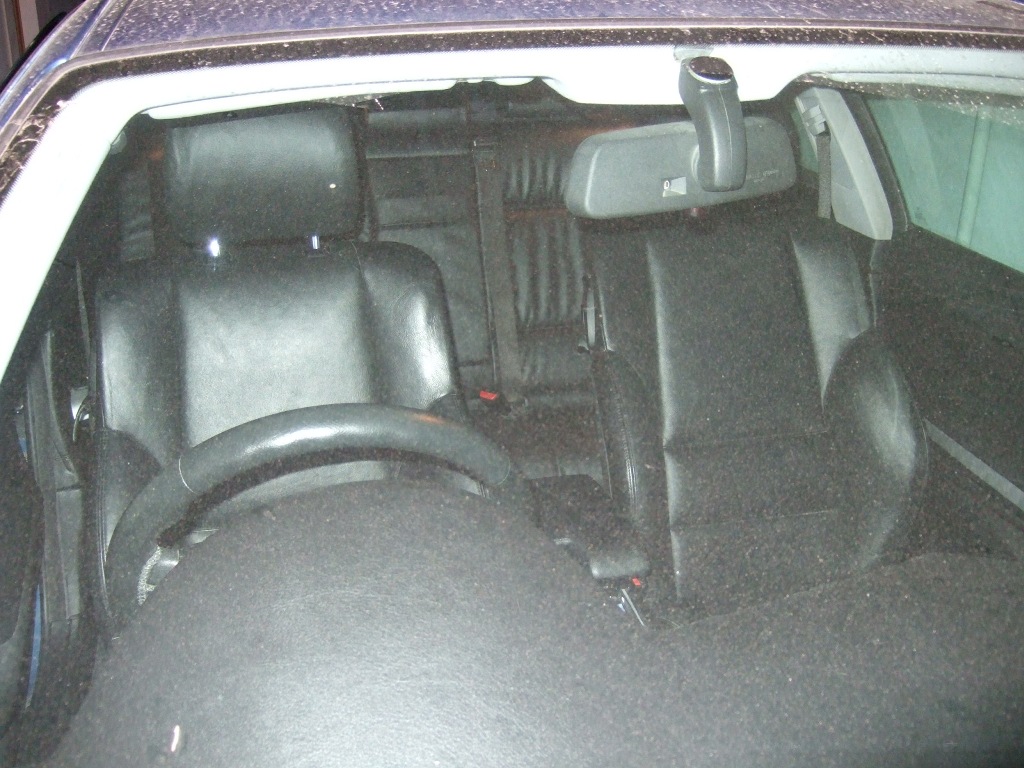

Car is dirty but I don't have a wide angle camera to get the interior from the inside.
