MAF Replacement

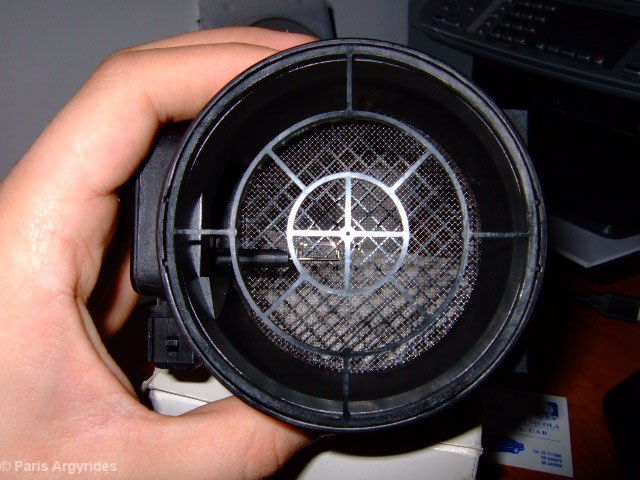

A faulty MAF (Air Flow Meter) will cause erratic idle, poor acceleration and fuel economy as well as occasional engine stalls before throwing a code. The MAF can fail because of dirt due to lack of air filter maintenance/proper cleaning. Excessive oil from oil-based air filters can be sucked through and damage the very sensitive sensor.



!Important!

Engine MUST be switched off before disconnecting/connecting the plug or serious damage may occur.



At first, you can try using MAF cleaner (or any NON-oil based electrical contact cleaner).

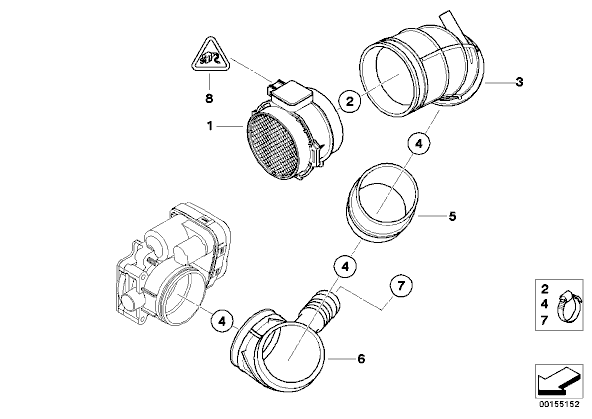

No. Description Supplement Qty  From   Up To  Part Number Price Notes

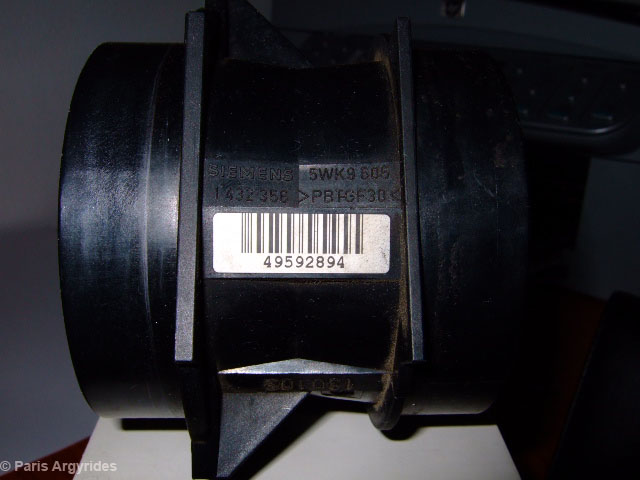

01 HOT-FILM AIR MASS METER   1     13621432356 $367.16
02 HOSE CLAMP L83-90 1     07129952133
03 RUBBER BOOT   1     13541705209 $15.62
04 HOSE CLAMP L77-84 3     07129952131
05 RUBBER BOOT   1   04/2003 13541437191   ENDED
05 RING   1     13541435626 $1.40
06 RUBBER BOOT   1   04/2003 13541437191   ENDED
06 TUBE ELBOW   1     13541435627 $12.16
07 HOSE CLAMP L28-33 1     07129952113




Removing the MAF (Item #1) is very easy:



1. Disconnect the plug, the 1 hose clamp that holds it and the two metal brackets on the airbox.



2. Remove MAF









3. Spray a generous amount of cleaner



4. Be sure that the filter is dry from cleaner before plugging it back.

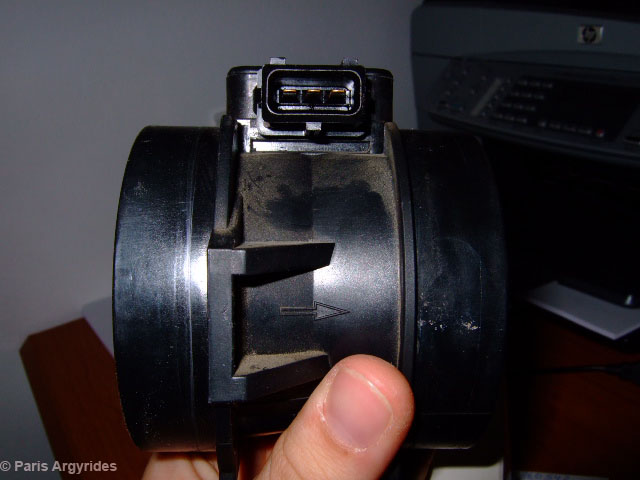

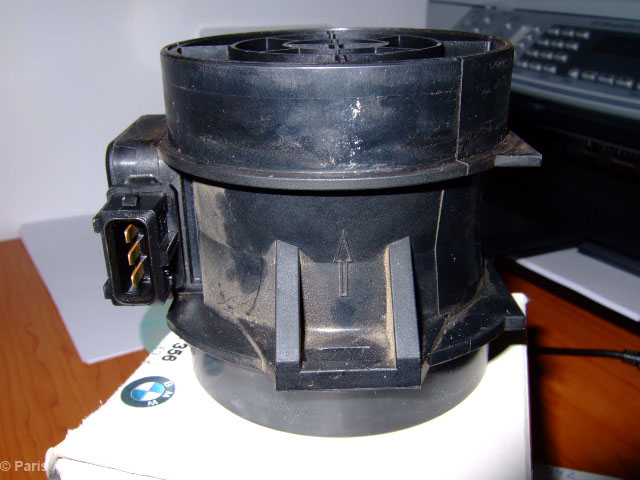

5. After cleaning, put it back observing the directional arrow (don't put it backwards)



6. Plug the wires back and you are ready to go.
