Finally after several
efforts I managed to source a complete leather sport interior for my
E46. Everything were plug and play apart from the connections for
the electric motors under the seats. Following a very comprehensive
guide online I managed to connect everything together. Power is
drawn by 2x30A fuses from the fusebox directly using the always on
12v supply.
Fuse positions #65 and #70 are vacant and are dedicated to the Power
Seat Adjustments so you only have to run:
12 Gauge + and - to the Passengers side seat and....
12 Gauge + and - to Drivers side seat plus an additional wire for
the K-bus location in the fuse panel. This is to activate the memory
controls for the drivers side seat.
Drivers Side (25 Pin
Plug)
Pin 13 - Power (Connect the 12 Gage Wire you ran to the seats at
this Pin)
Pin 14 - Ground (Connect Ground here)
Pin 15 - K-Bus (Connect the wire that went to the comb connector
full of Red/White/Yellow wires to this pin, it is for the memory
fucntion ONLY and will not affect the Power seat Motors)
Passengers Side (25 Pin Plug)
Pin 13 - Power (Connect the 12 Gage Wire you ran to the seats at
this Pin)
Pin 14 - Ground (Connect Ground here)
The rest of the panels
(rear seats, door panels, rear section panels, armrests, headrests
are plug and play).

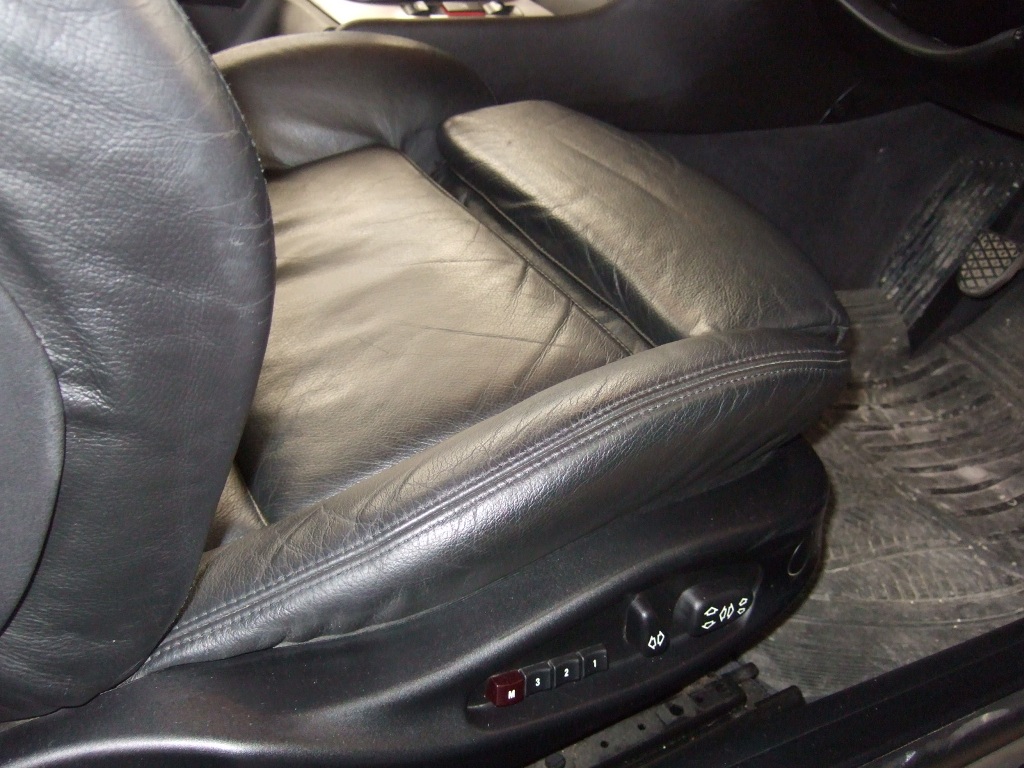

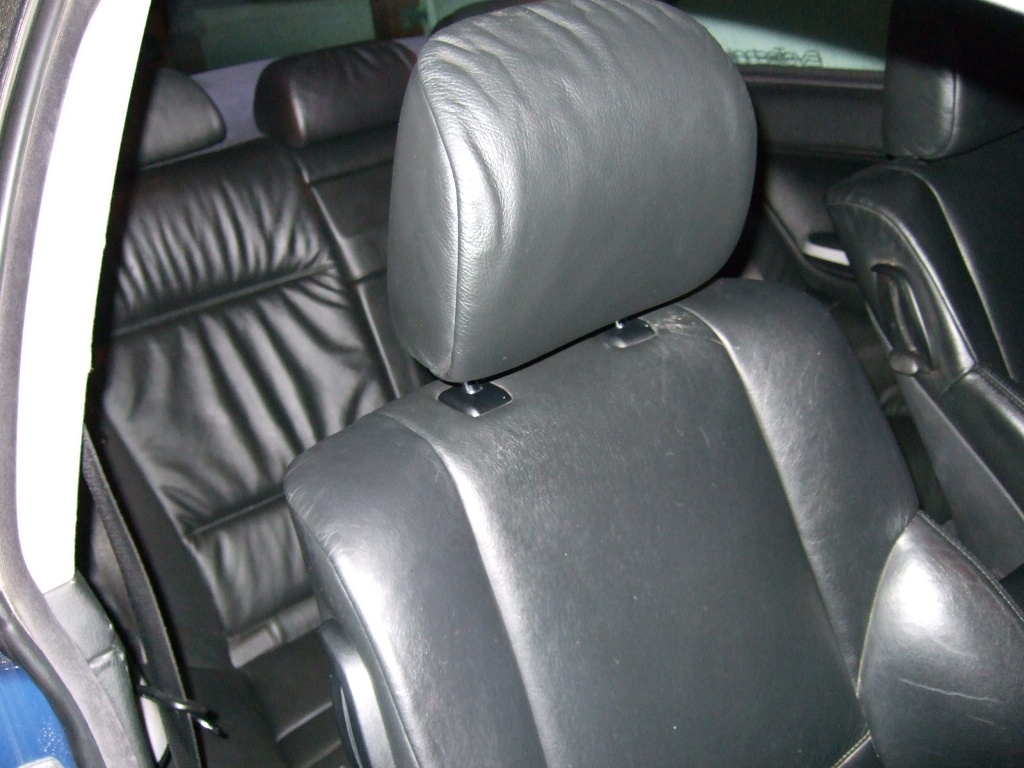

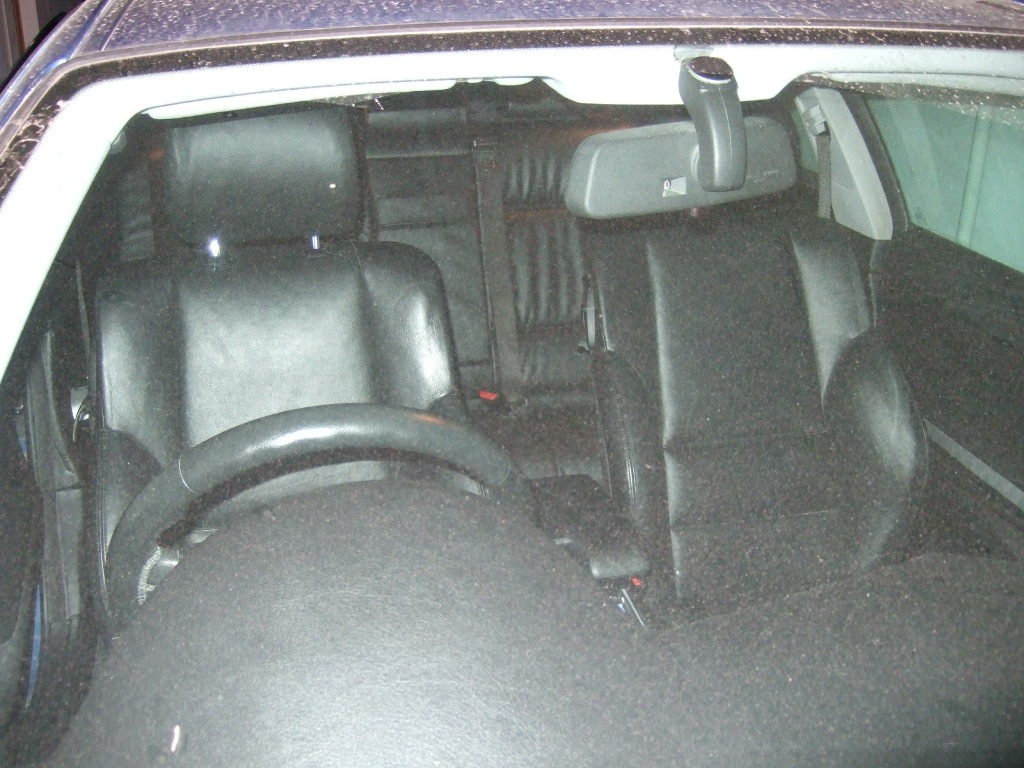

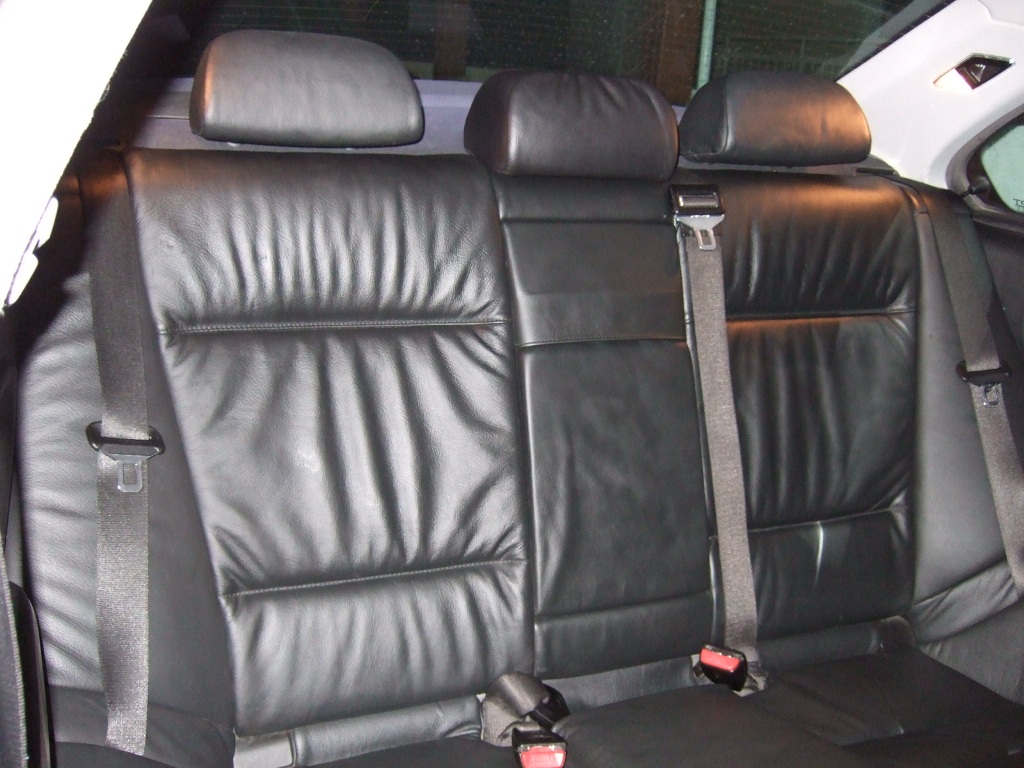

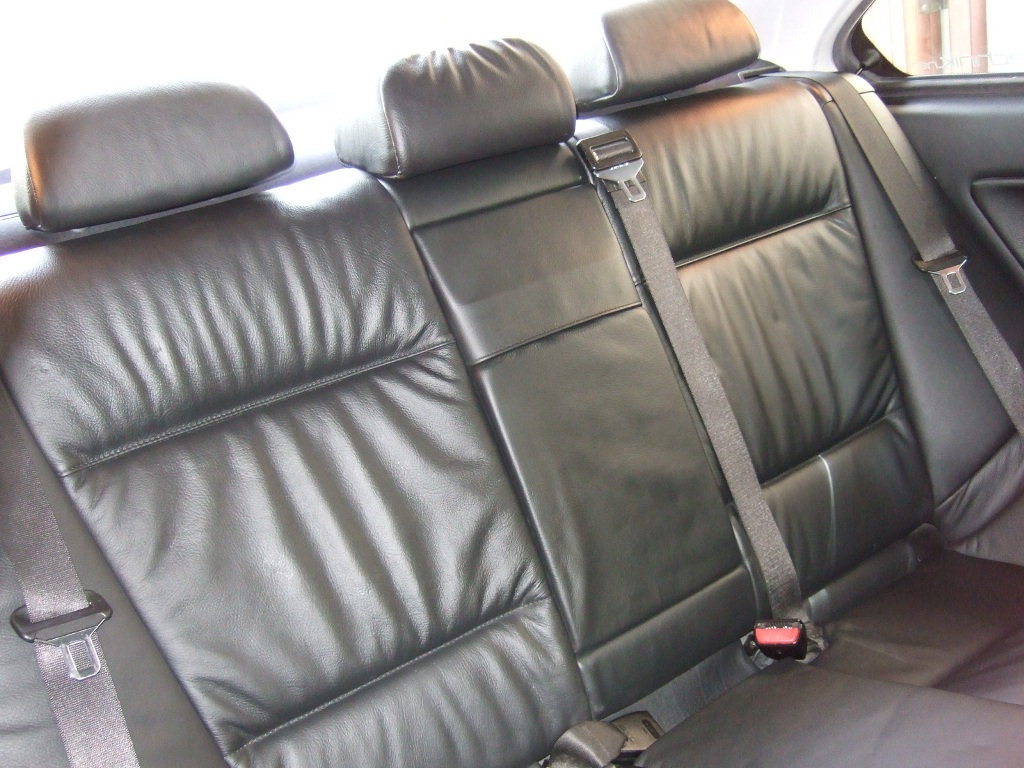

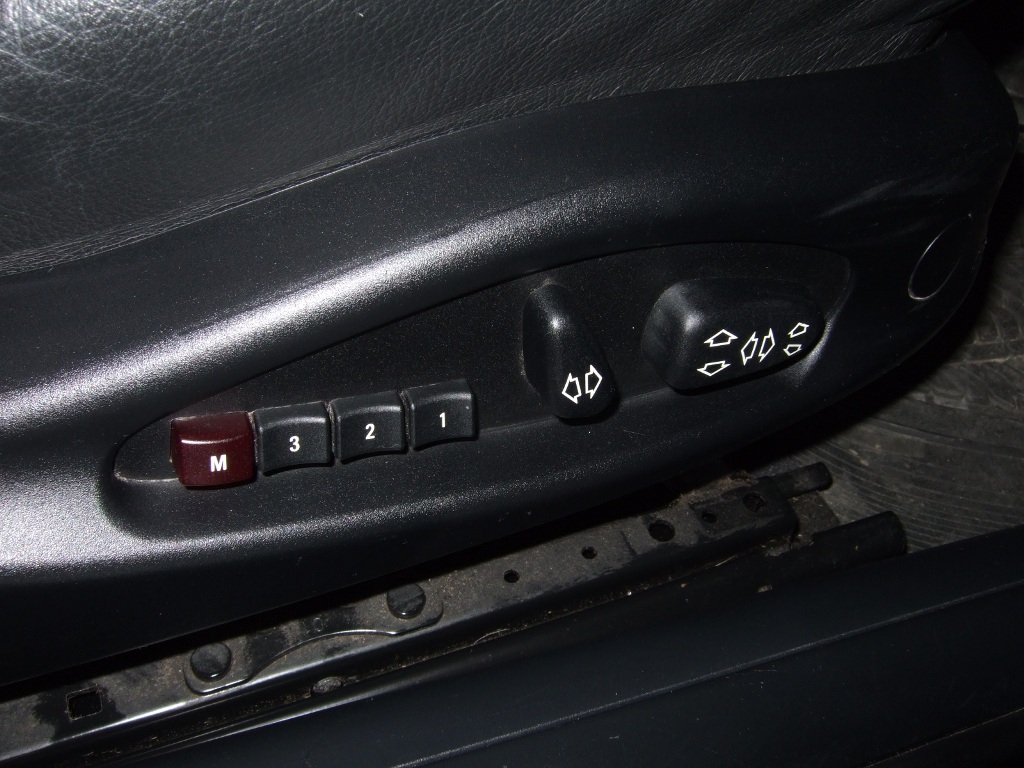

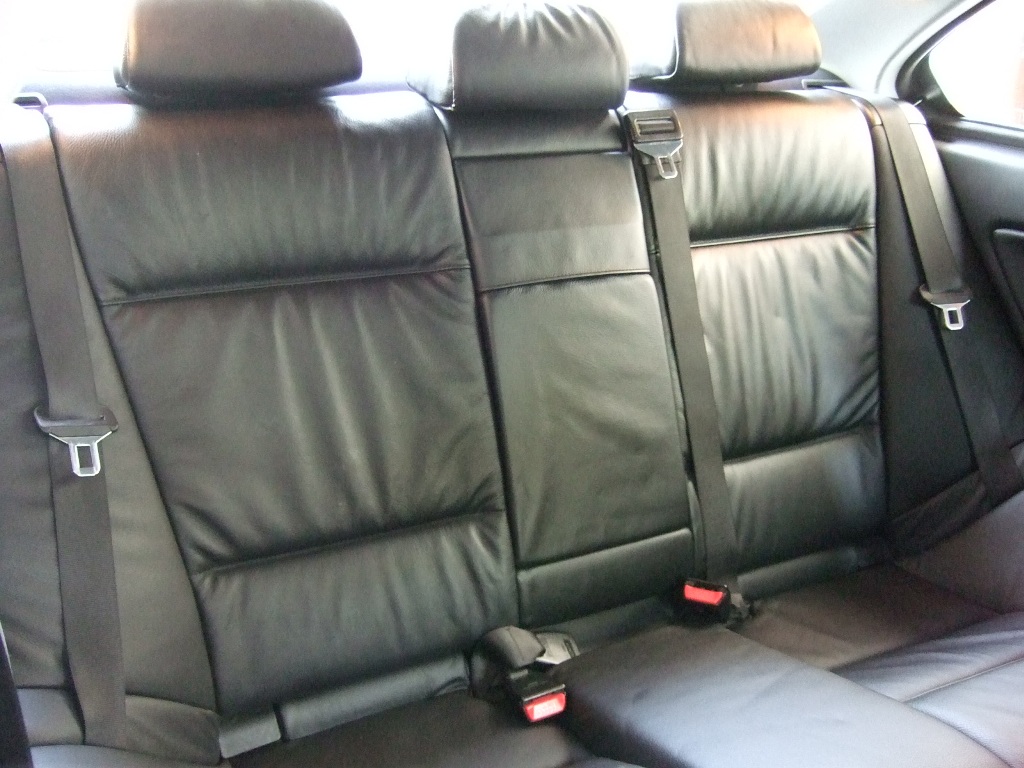

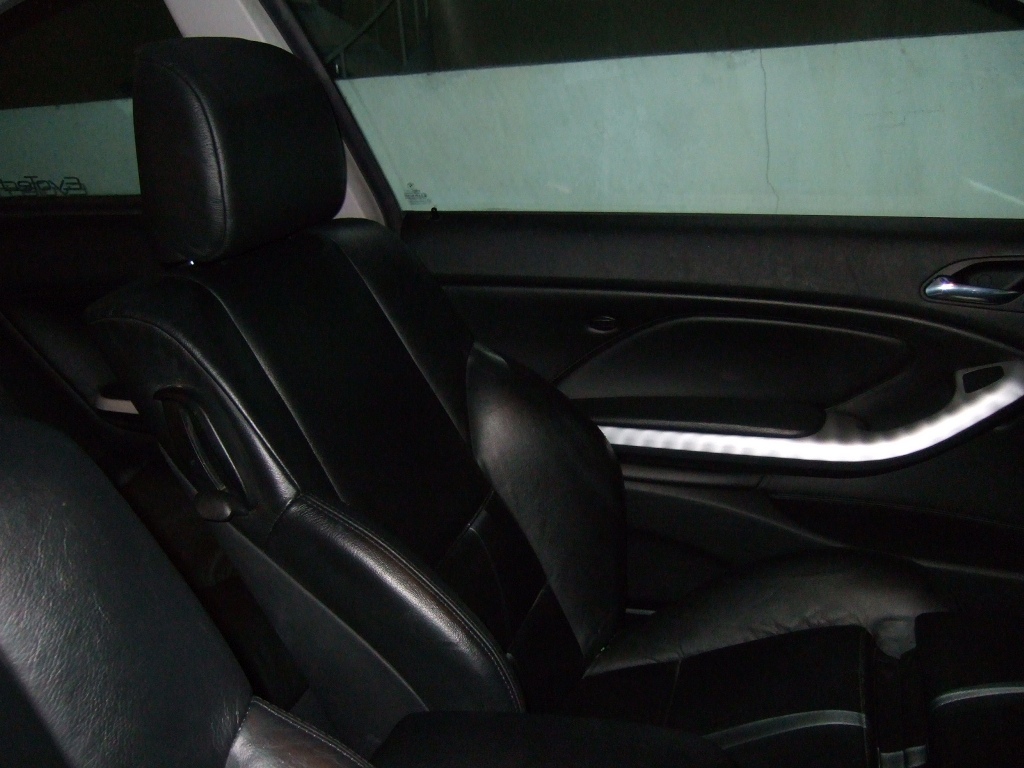

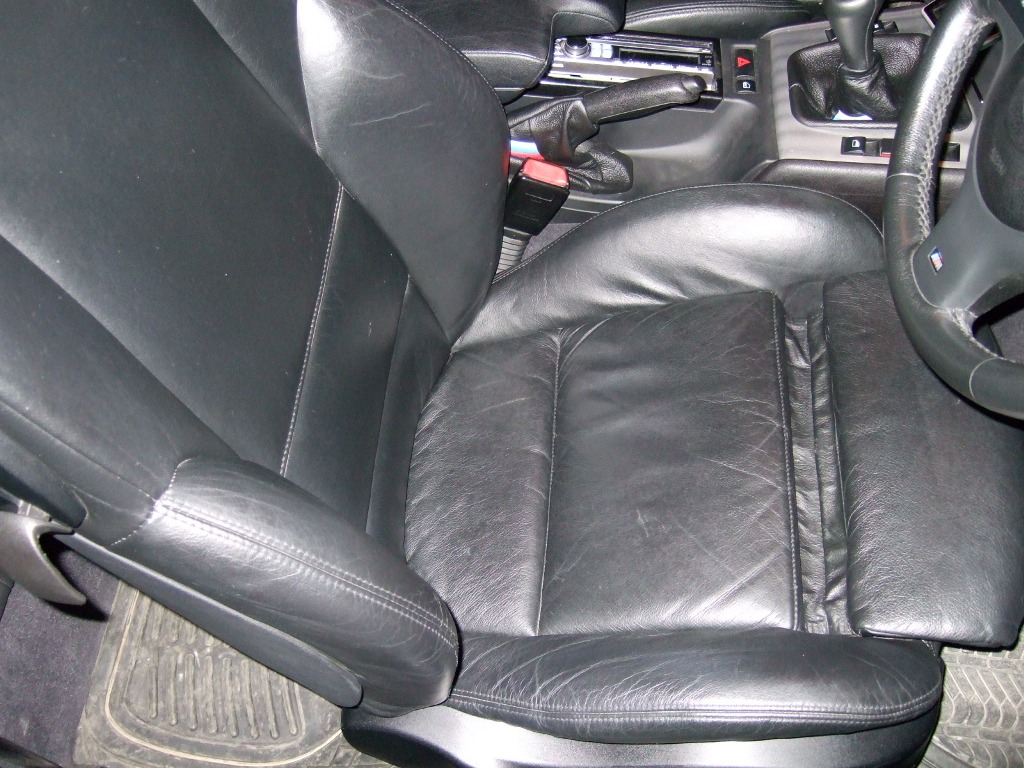

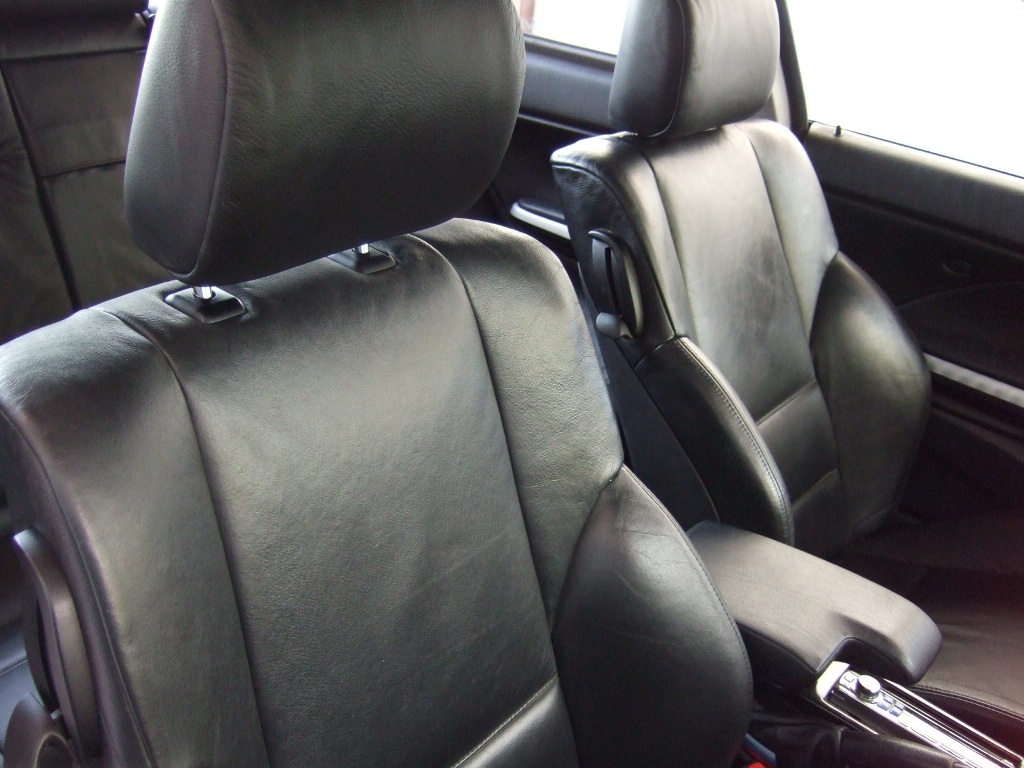

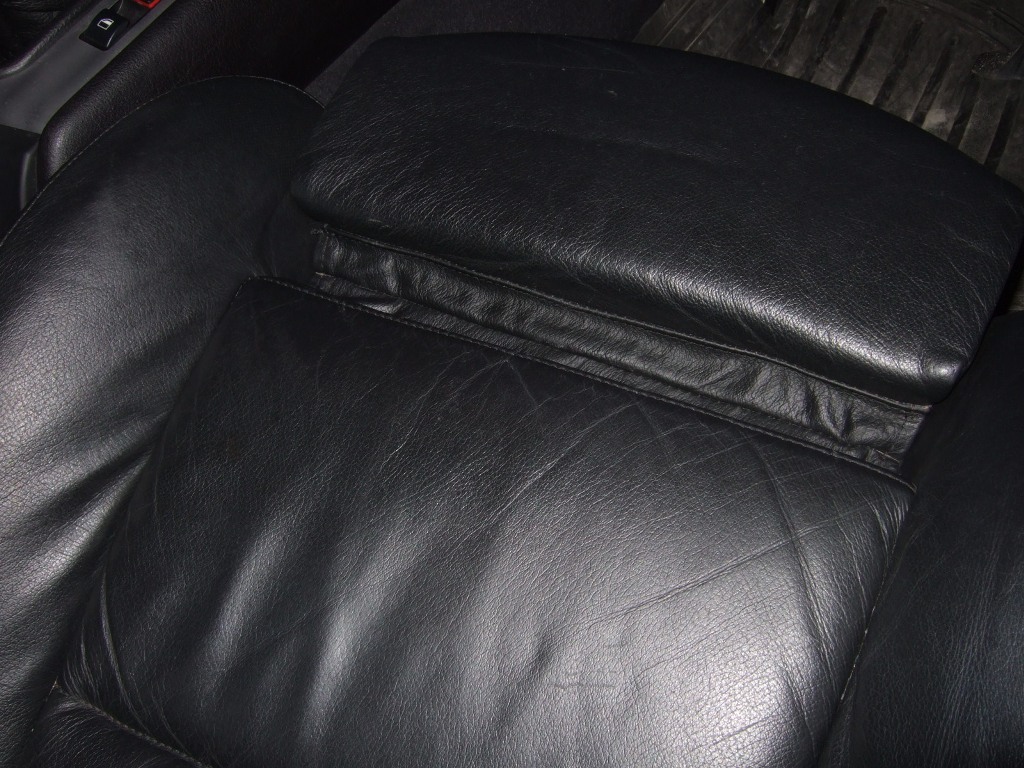

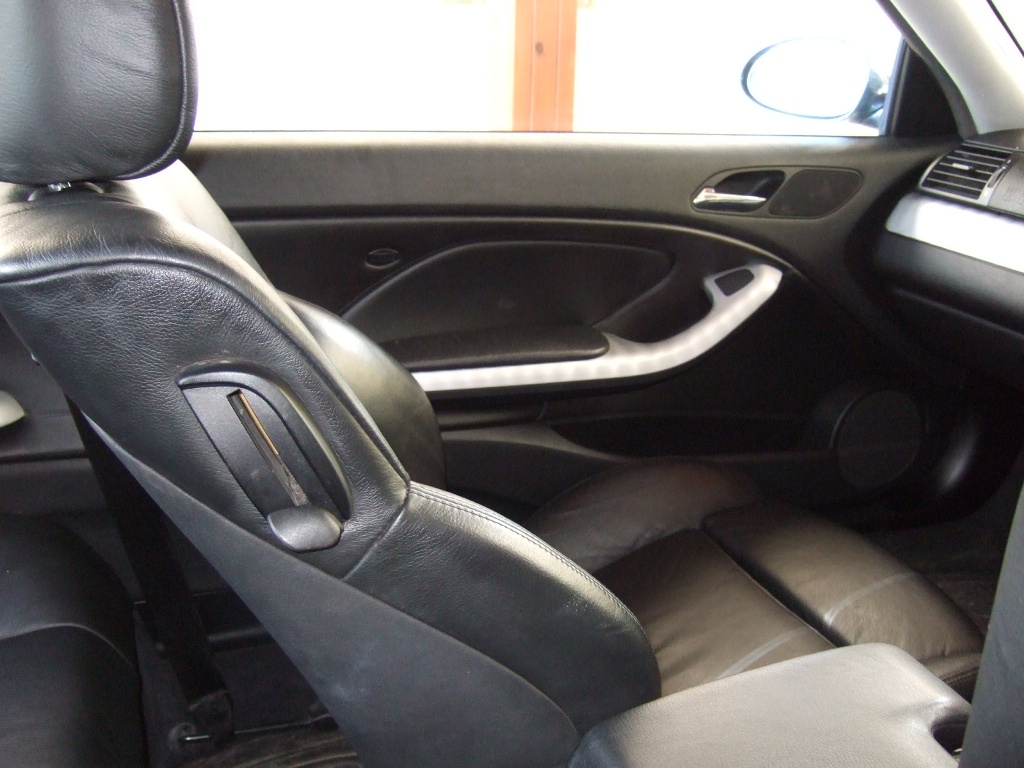

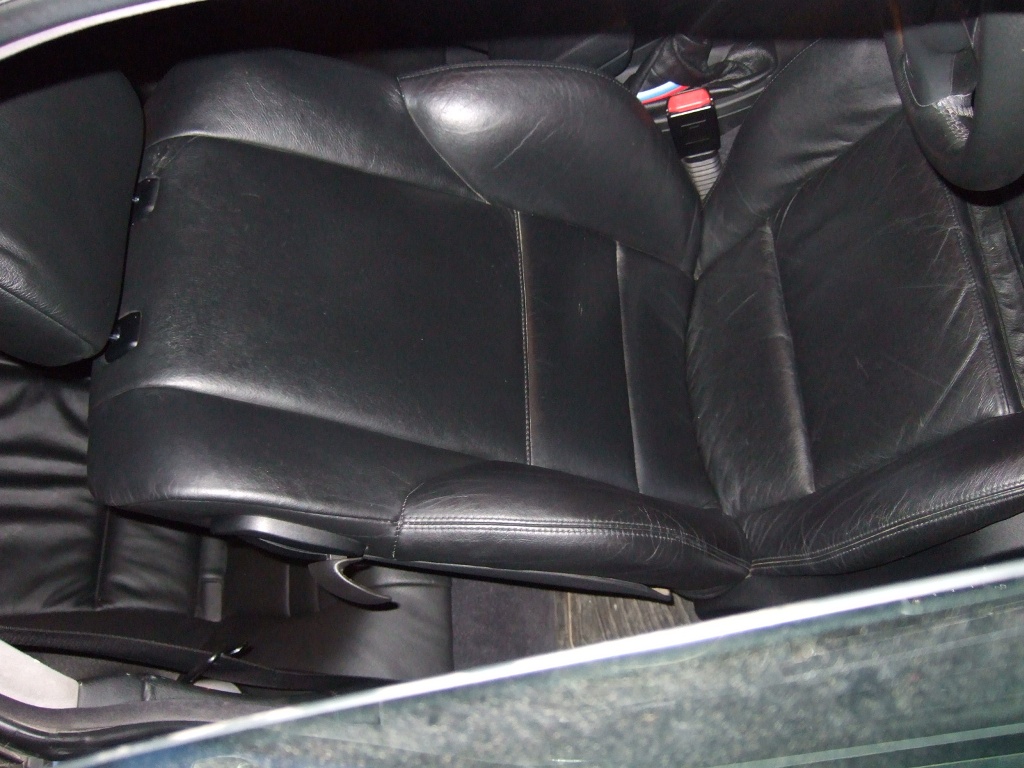

Here's the end result:
 |
