Near the end of the installation. After the car had finally started fine with my good old ECU plugged, it was time to put back all the covers and the bumper. I know the engine is dirty but I'll do a good clean as soon as I get the car into my driveway.

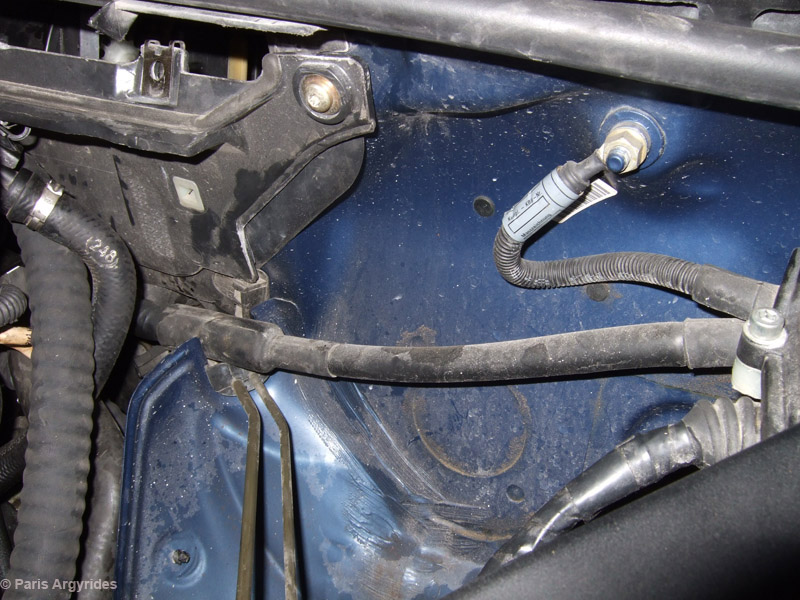

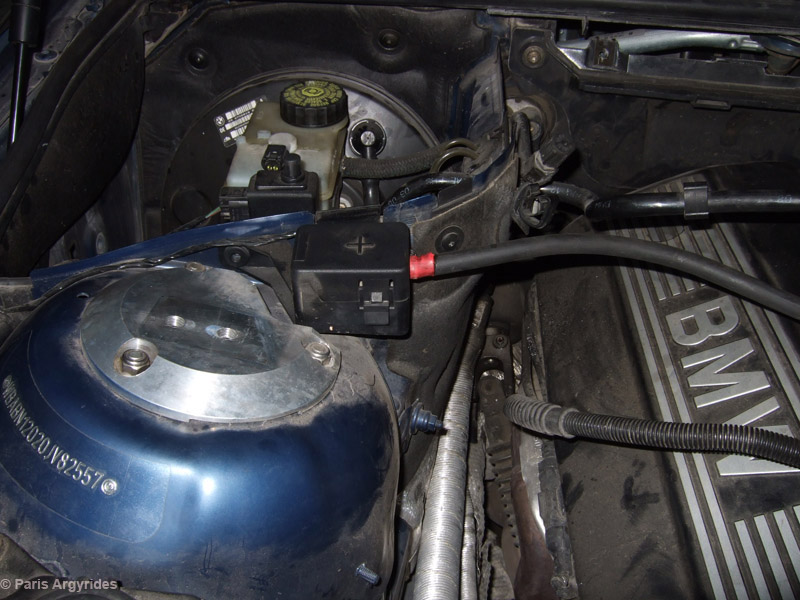

Starter cable positive terminal in place.

Blower fan cover in place

Fan secured with brand new push-lock pins

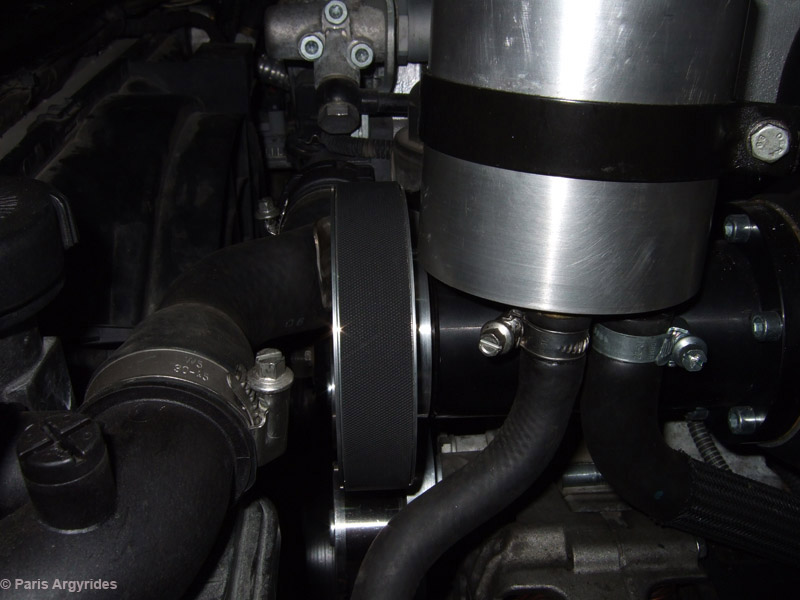

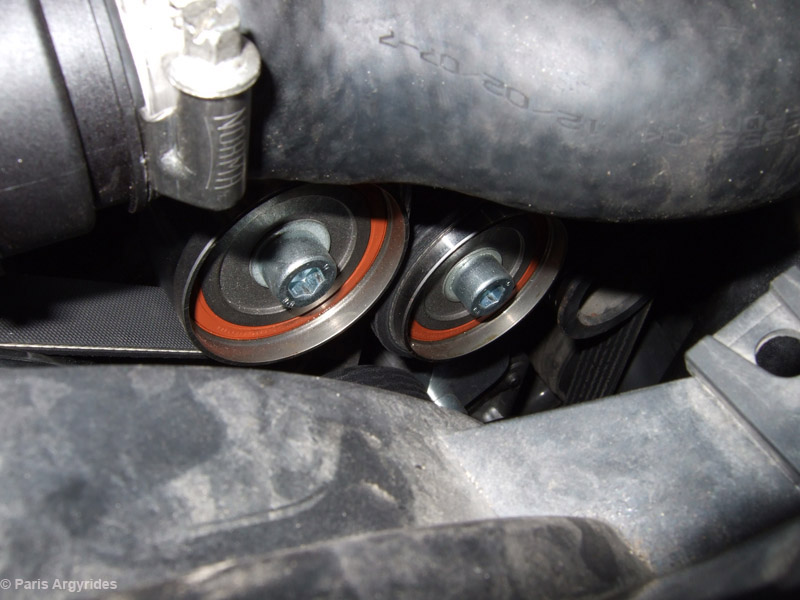

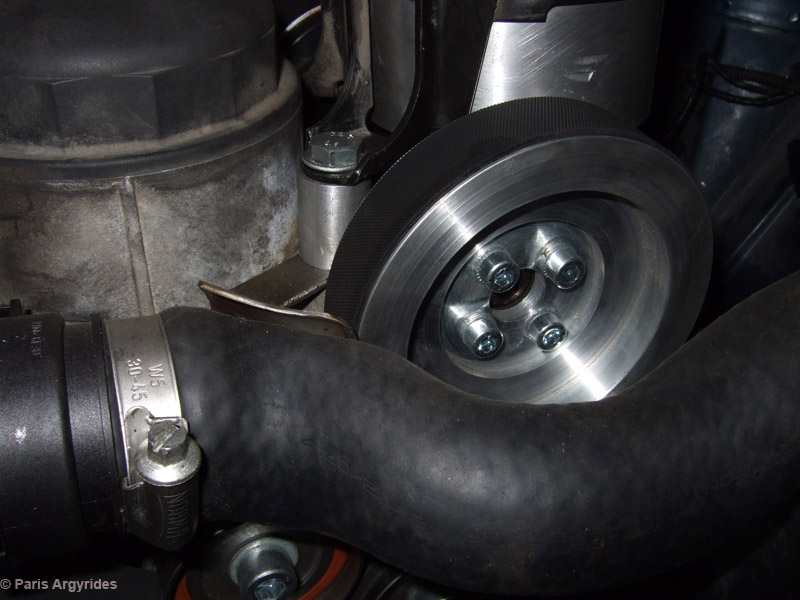

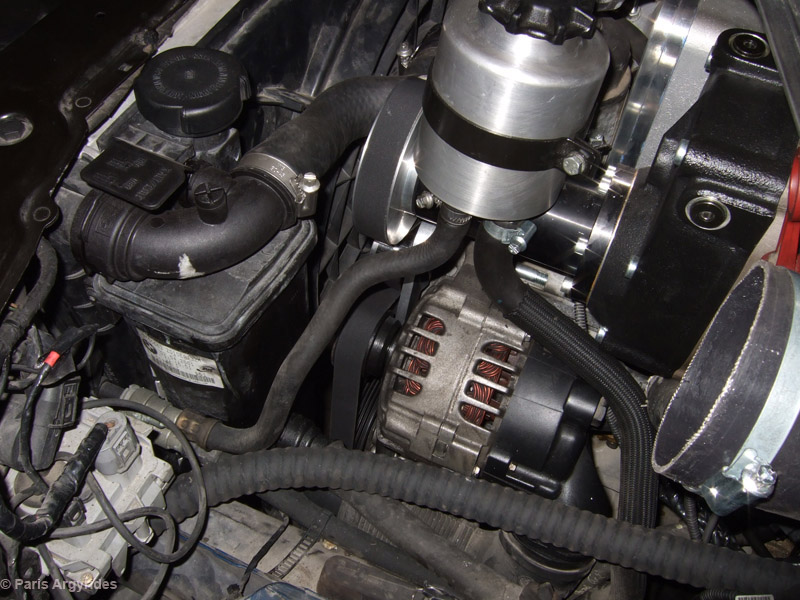

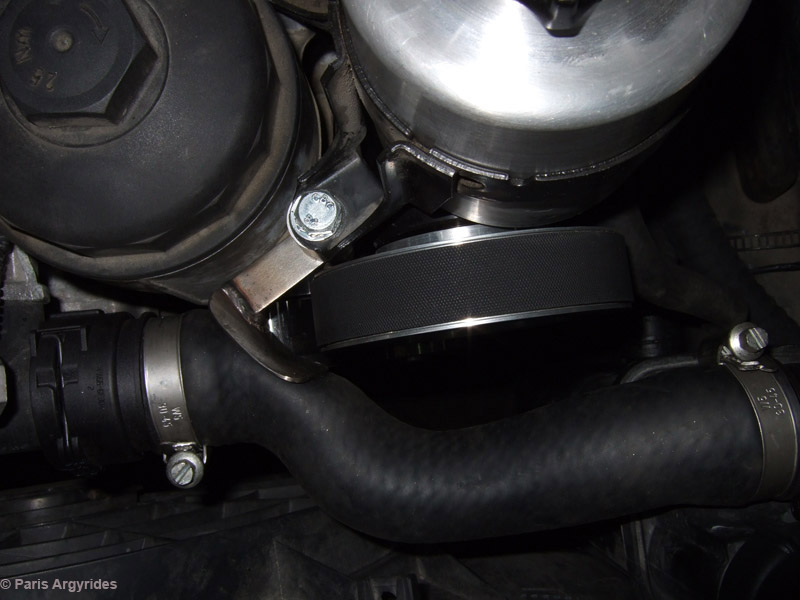

The TS pulley close

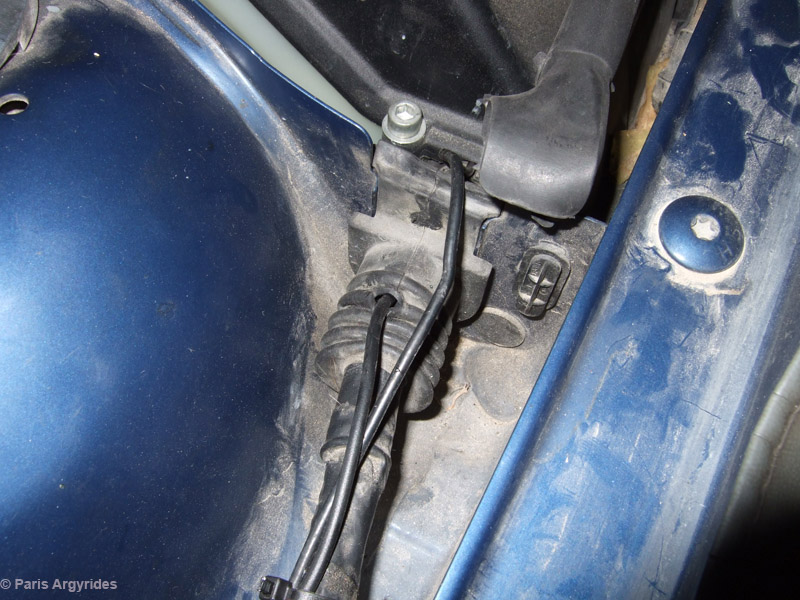

The pump wire going into the ECU box. Sealed it with silicone

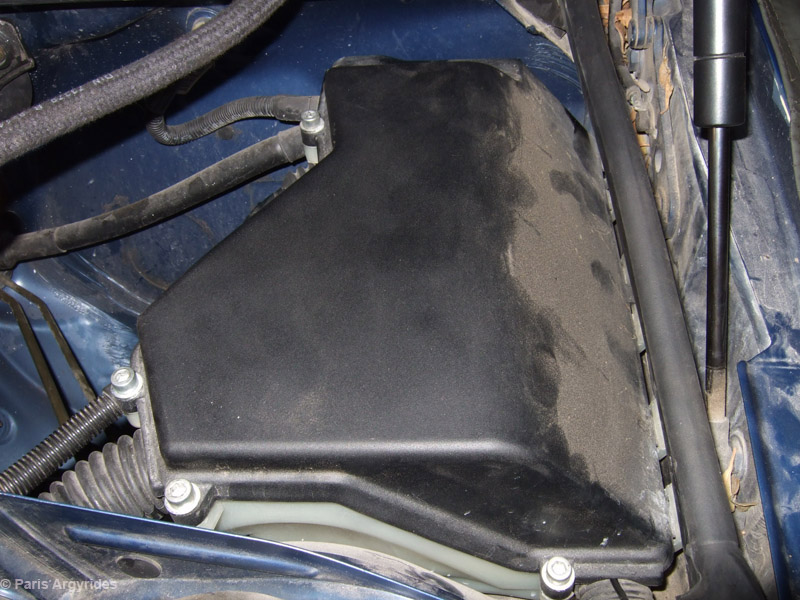

ECU box finally closed and sealed.

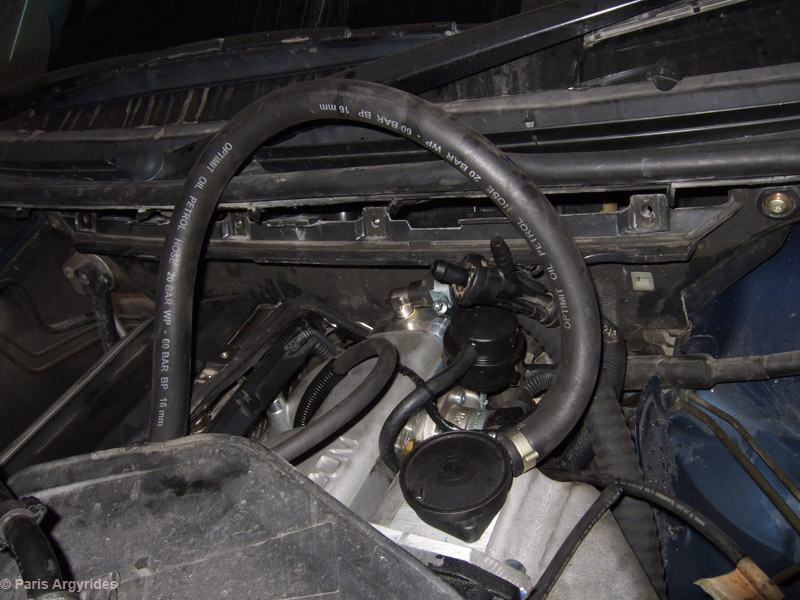

Oil vapor hose is too long, so we shortened it a bit

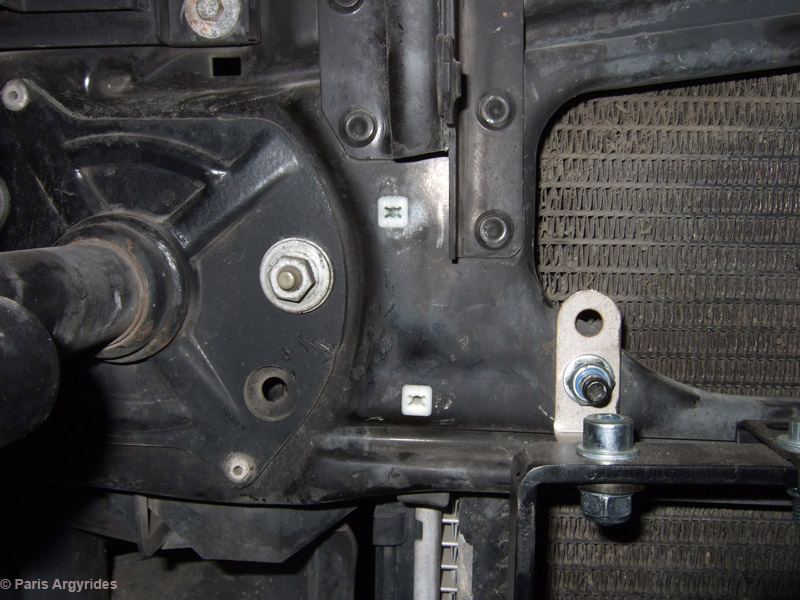

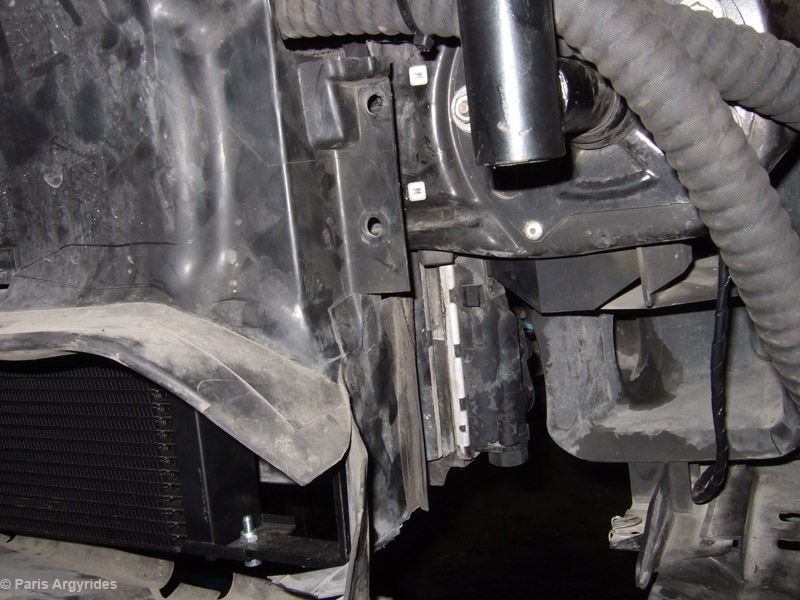

Plastic cover mounting holes (between radiator and bumper)

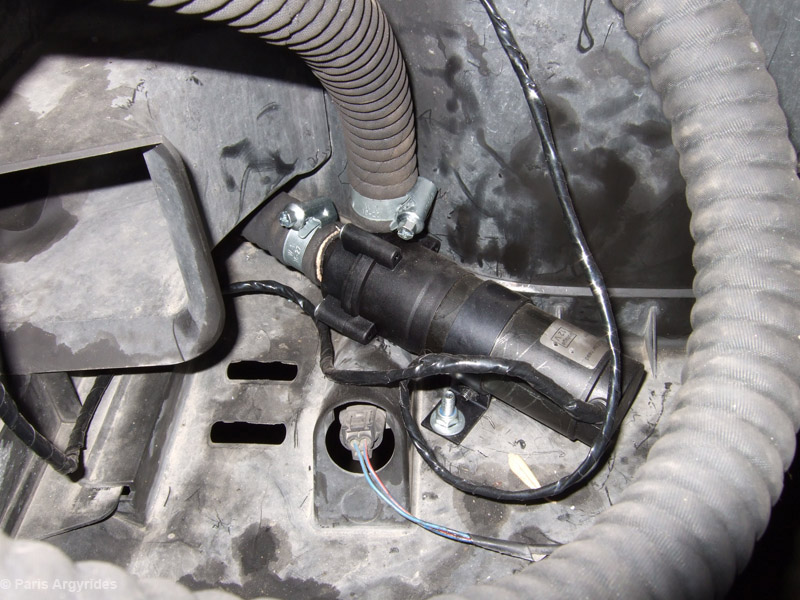

Pump secured

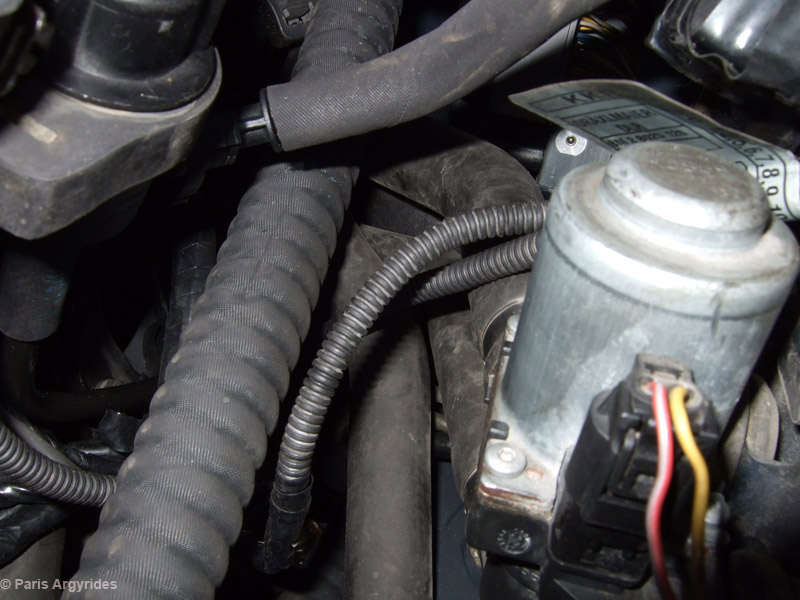

Secured all cables under the TS

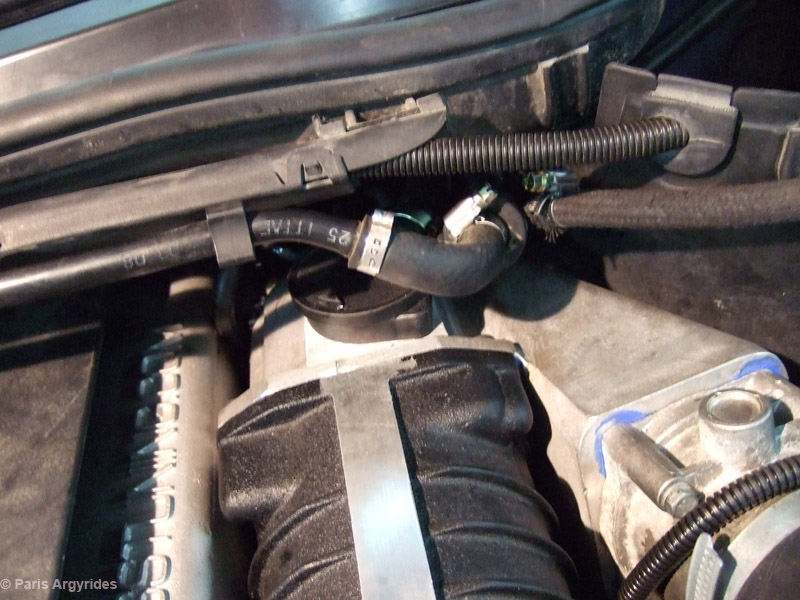

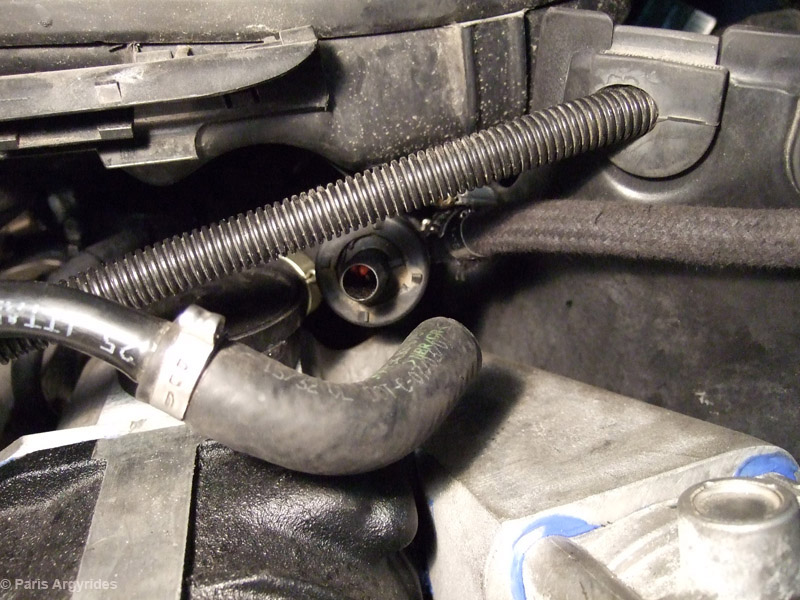

Connected oil recirc. hose

Shortened it a bit to fit perfectly

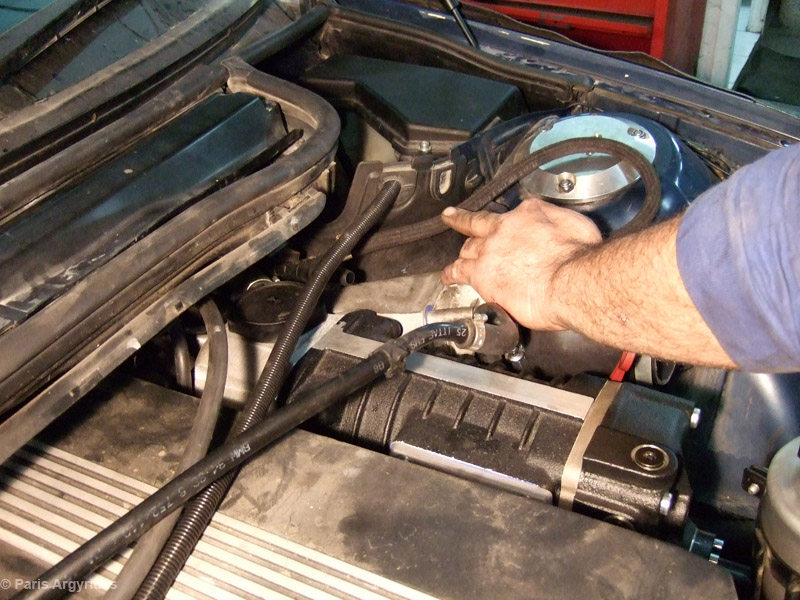

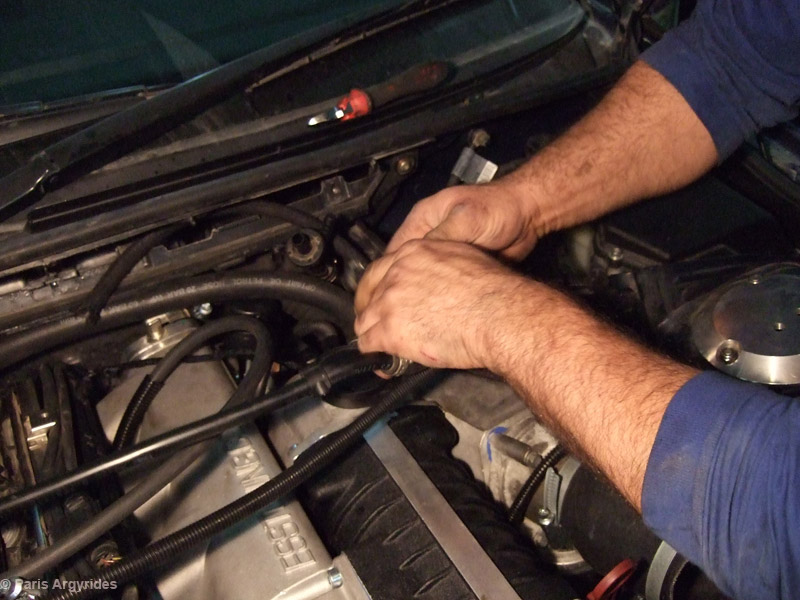

Brake booster hose connected and tightened

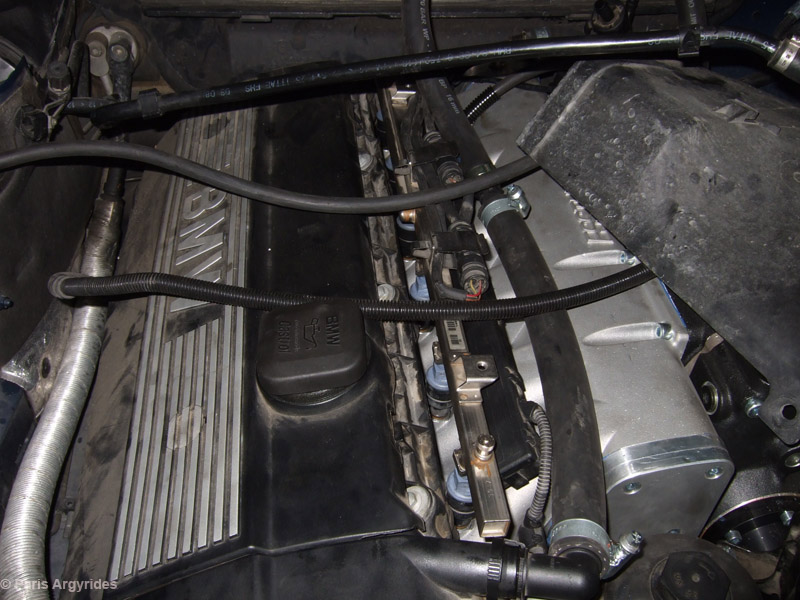

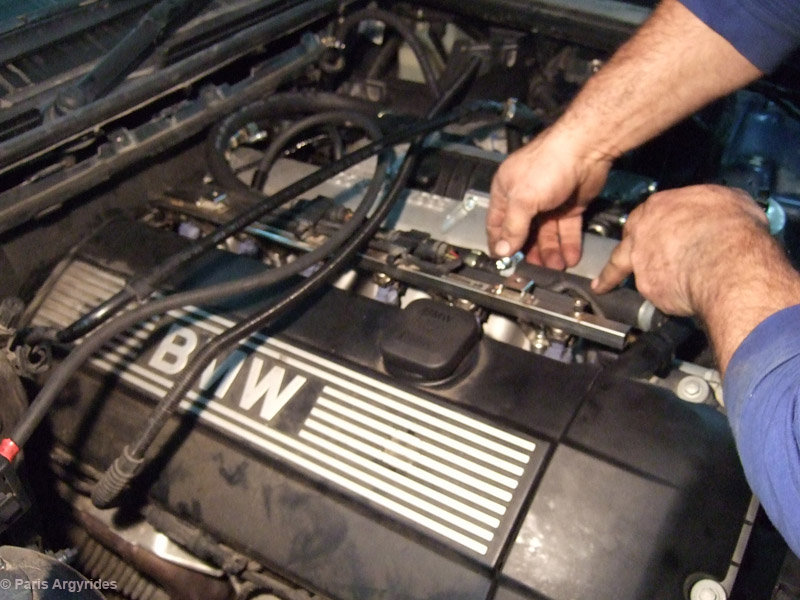

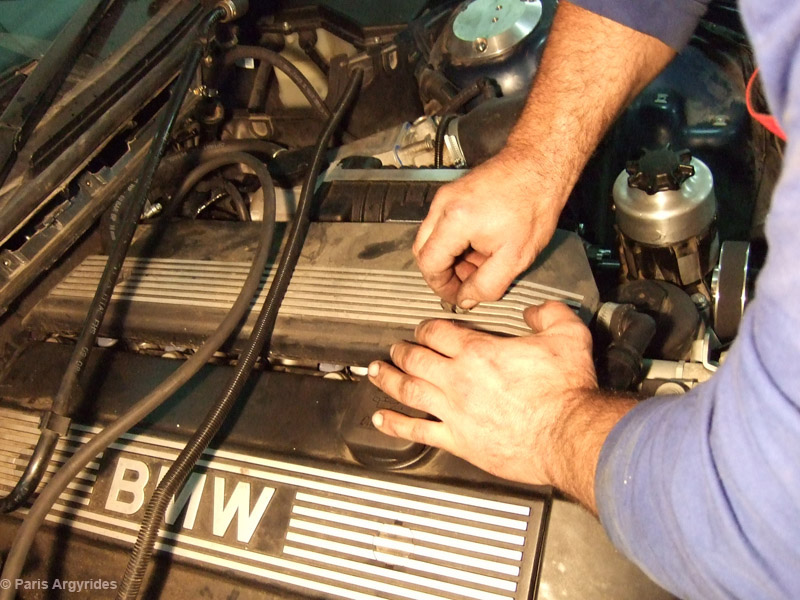

Injector Cover on!!

Pollen Filter housing

Cutting the extra long hoses

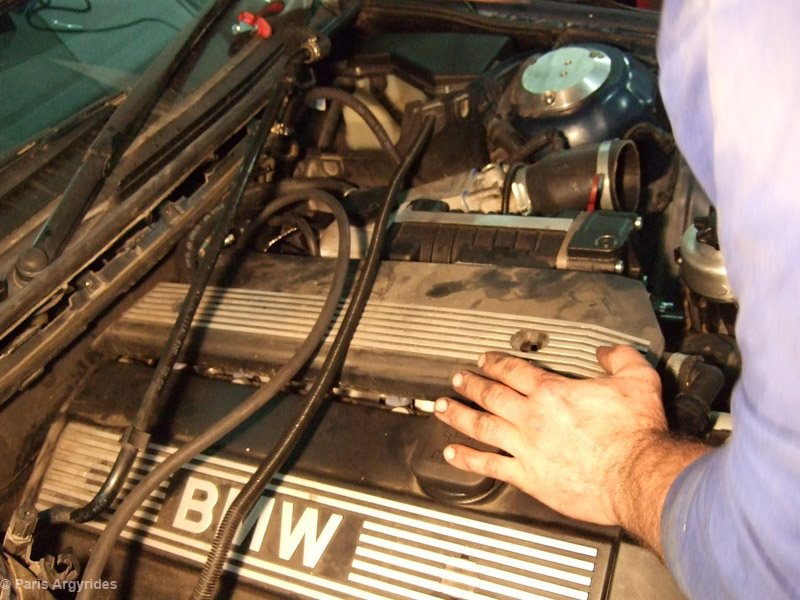

Almost done..

Brake booster

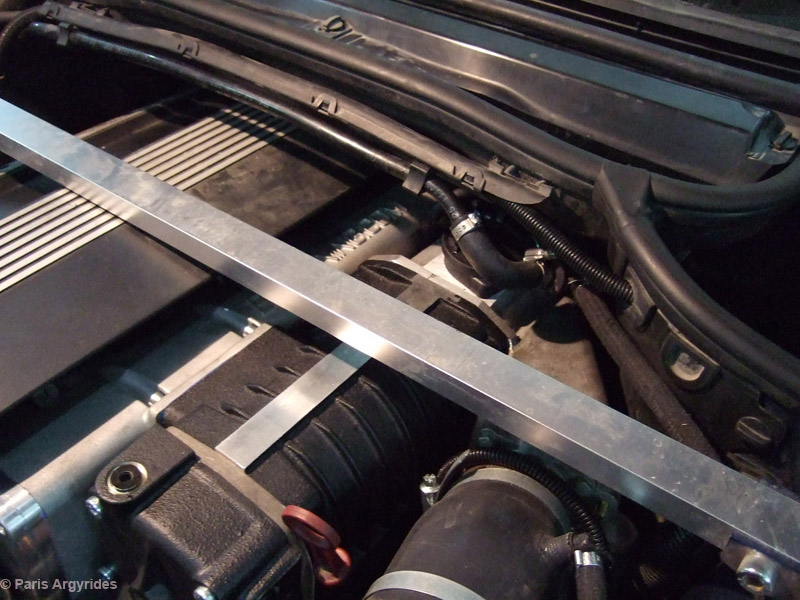

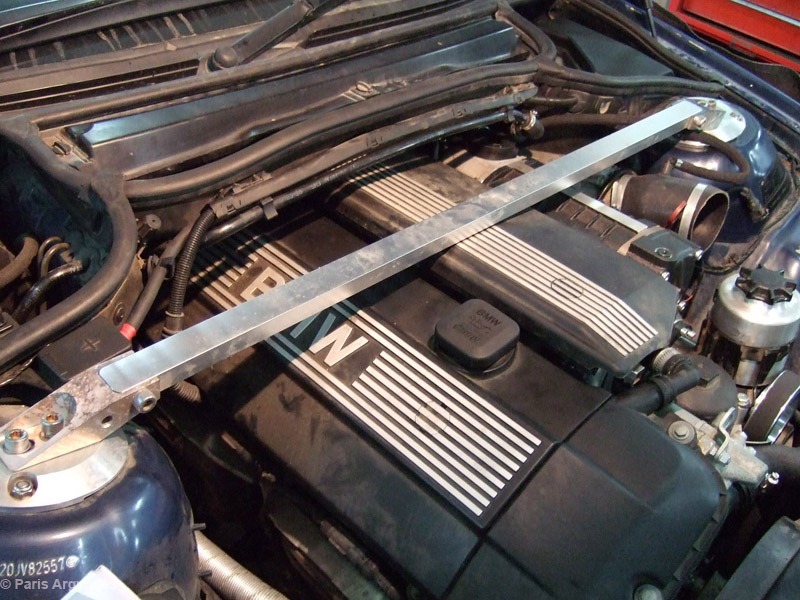

Strut bar

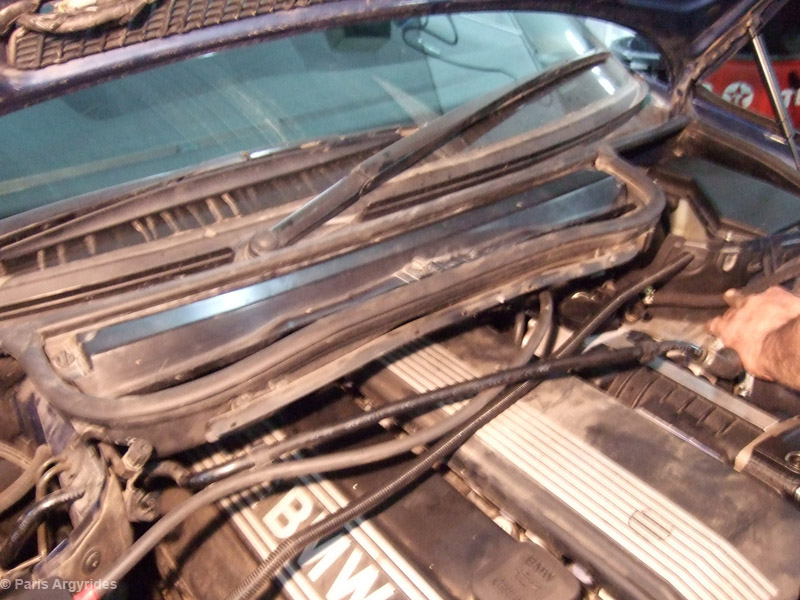

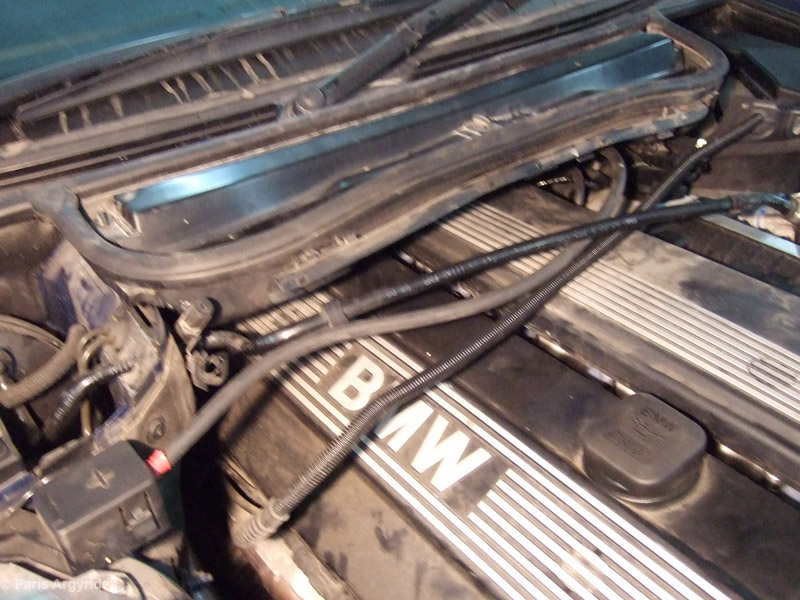

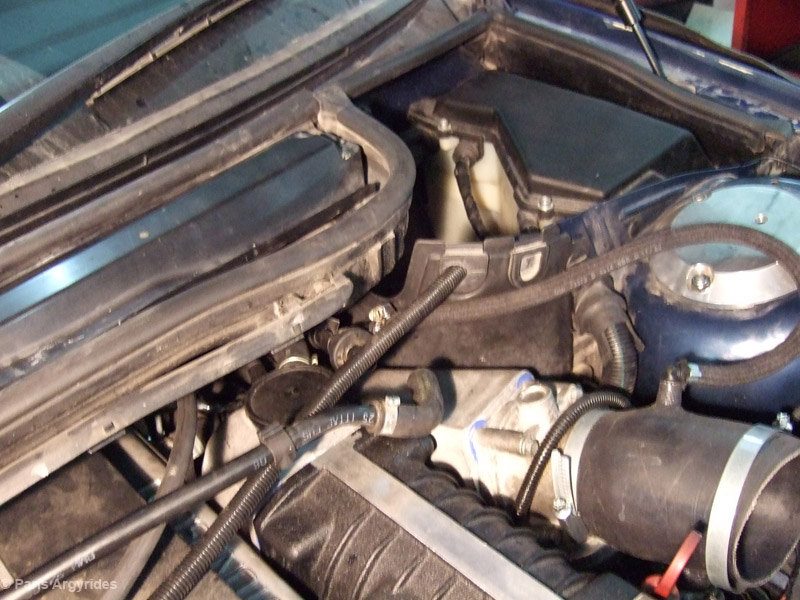

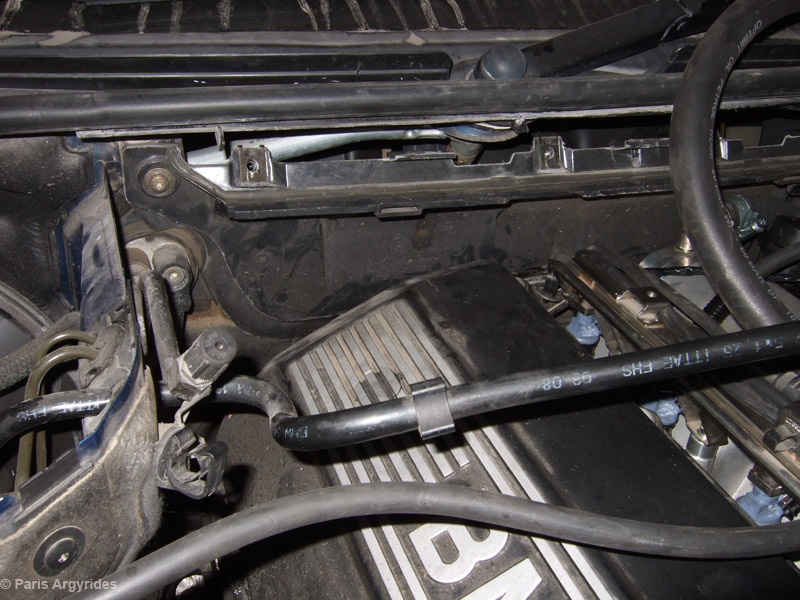

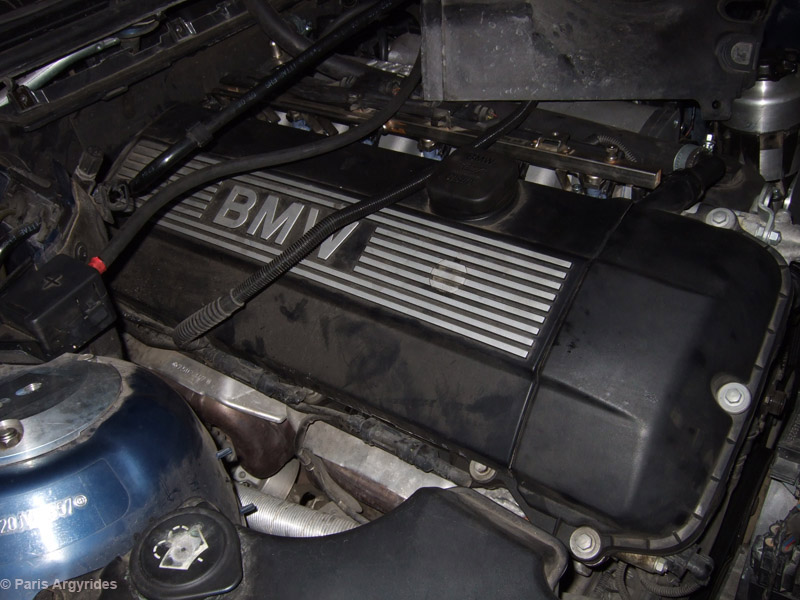

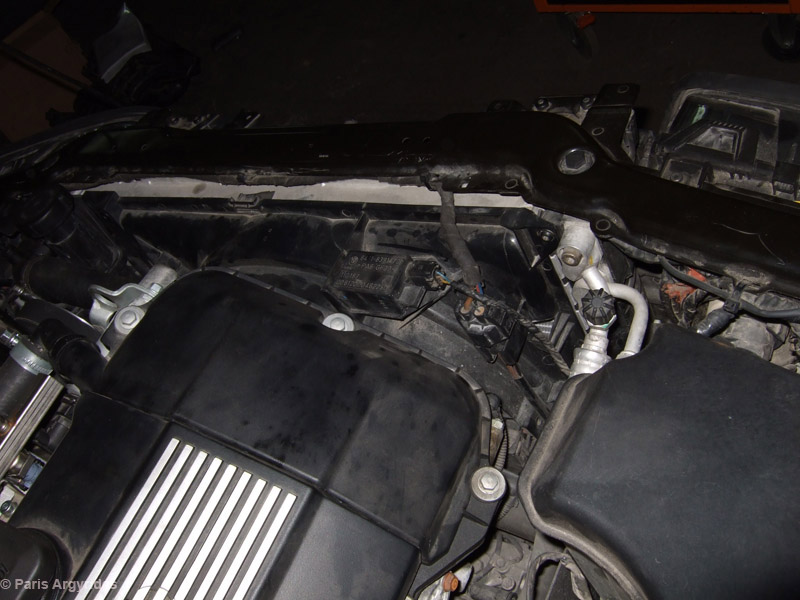

Wires & hose across the engine all setup

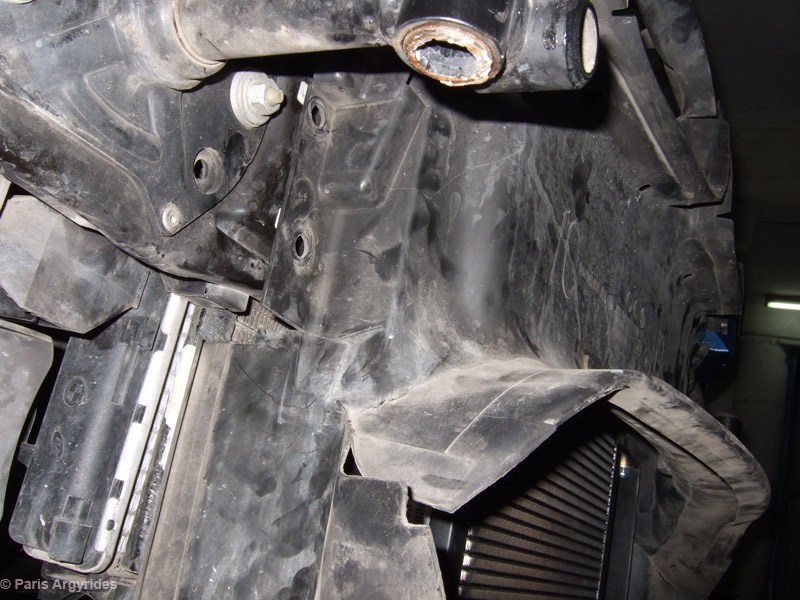

Modifying the plastic cover between bumper and radiator to fit.

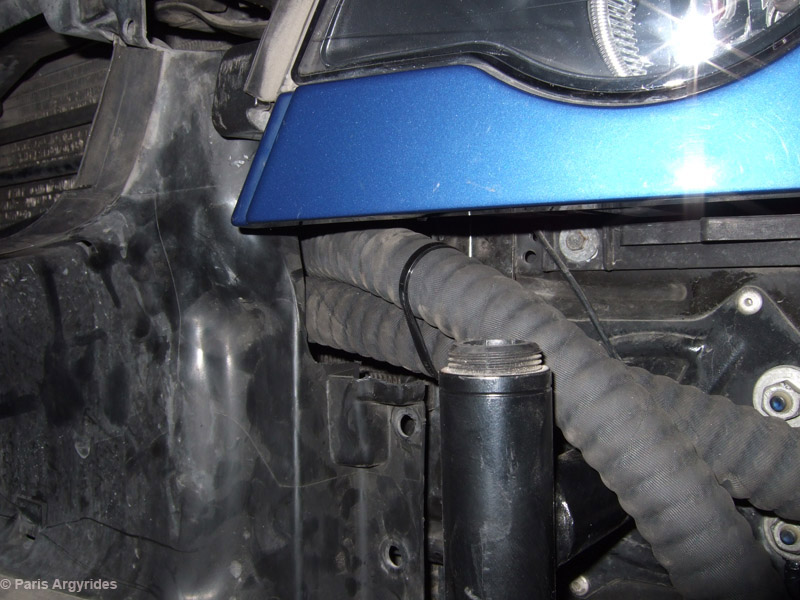

Cable ties hold the heat exchanger hoses

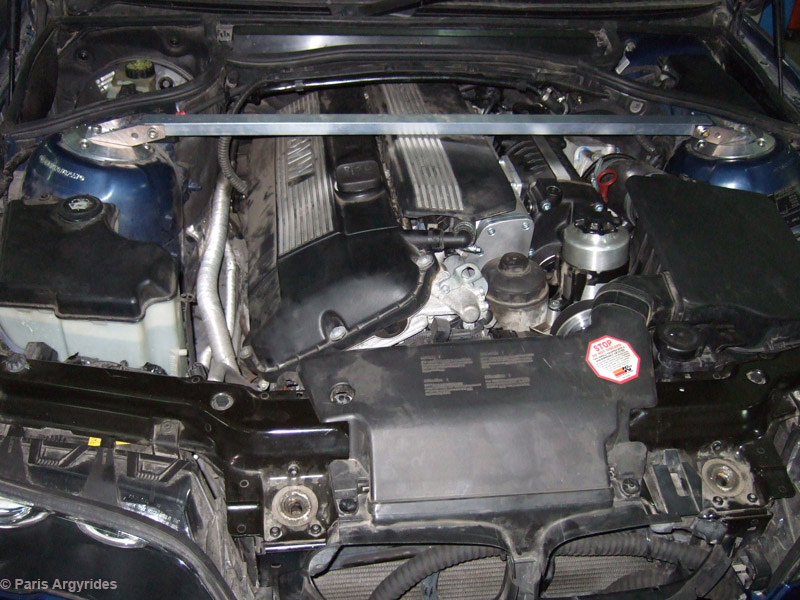

DONE

This is a short video of the first TS2 start. More to follow
